Schmalz part

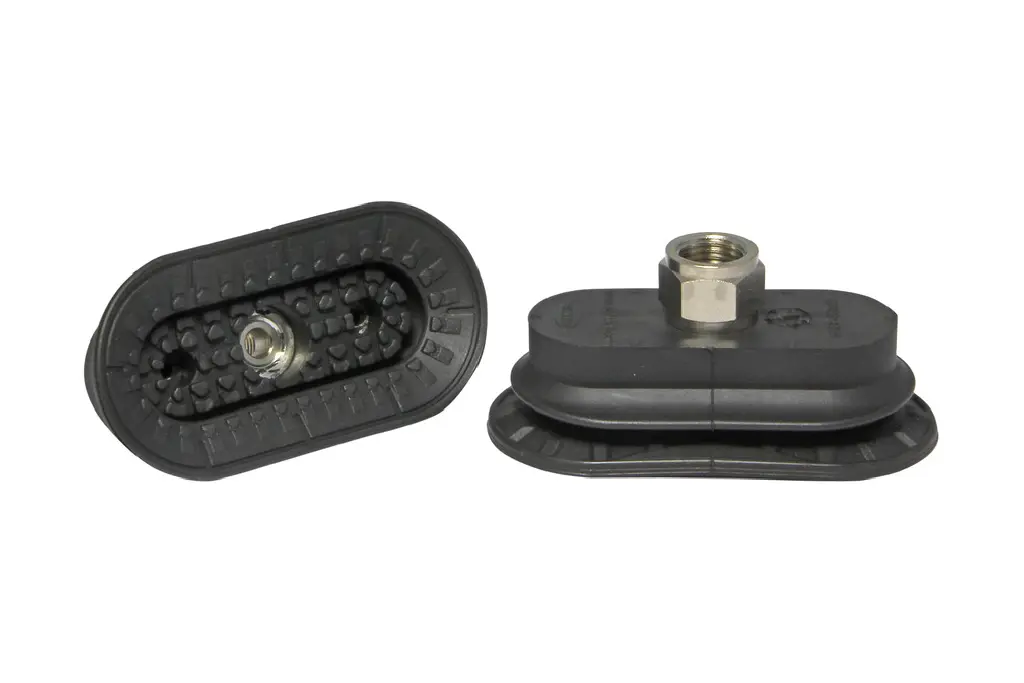

SAOB 80x40 HT2-65 G1/4-IG
Part no.: 10.01.06.02446
Bellows suction cup (oval) for best dynamics
Price
$301.74
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 80 x 40 |
|---|---|
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G1/4-IG |
Product family
Suction area (LxW) 60 x 30 mm and 80 x 40 mm
| Width B1 | 31 – 40 mm |
|---|---|
| Bmax(S) | 33 – 43 mm |
| Suction cup width Bs | 30.6 – 40.6 mm |
| Nominal diameter dn | 5 – 6 mm |
| Thread G1 | G1/4"-M, G3/8"-F, G1/4"-F |
| Height H | 27 – 37.7 mm |
| Length L1 | 55.7 – 73.3 mm |
| Thread length LG1 | 8 – 9 mm |
| Lmax.(S) | 63 – 83 mm |
