Schmalz part

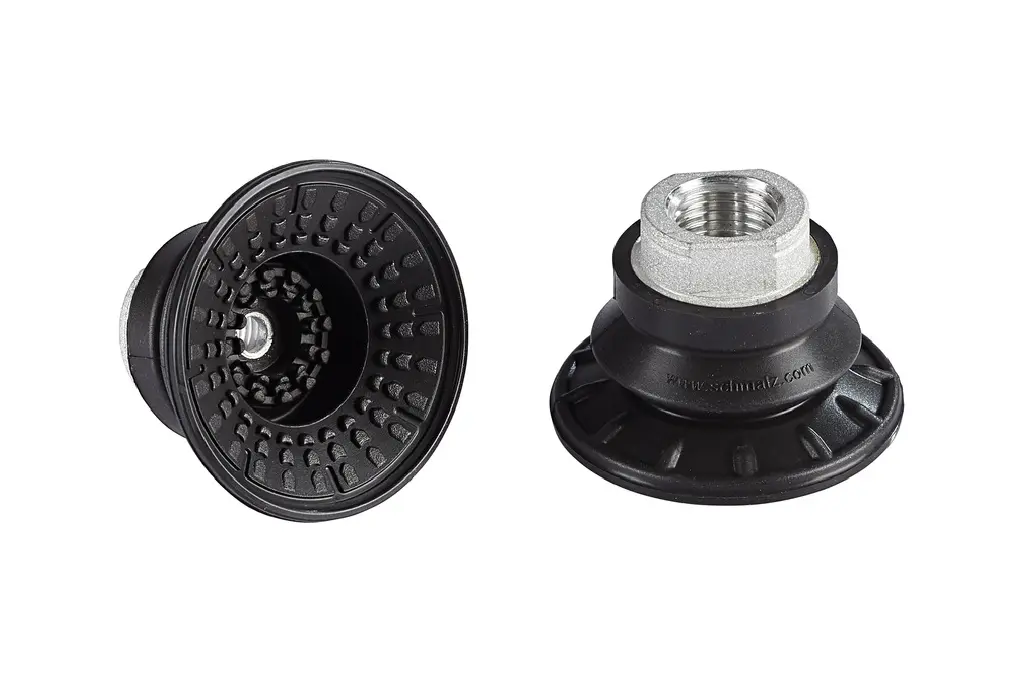

SAB 40 HT2-65 G1/4-IG
Part no.: 10.01.06.02427
Bellows suction cup (round) for handling hot workpieces
Price
$185.44
excl. VAT, shipping & packagingSpecifications
| Size | 40 |
|---|---|
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Temperature resistance | 200 (°C) |
| Nipple material | Aluminum |
| Connection | G1/4-IG |
| Number of folds | 1.5 |
Product family
Suction area (Ø) from 22 mm to 80 mm
| Nominal diameter dn | 3.5 – 6 mm |
|---|---|
| Outside diameter D1 | 22 – 65 mm |
| Diameter Dmax(S) | 24 – 88 mm |
| Diameter Ds | 20.6 – 81.2 mm |
| Thread G1 | G1/4"-F, G1/4"-M, G3/8"-F |
| Height H | 25 – 54.8 mm |
| Thread length LG1 | 9.5 – 20 mm |
| Key width SW1 | 16 – 22 mm |
| Spring stroke Z | 5.8 – 22 mm |
