Schmalz part

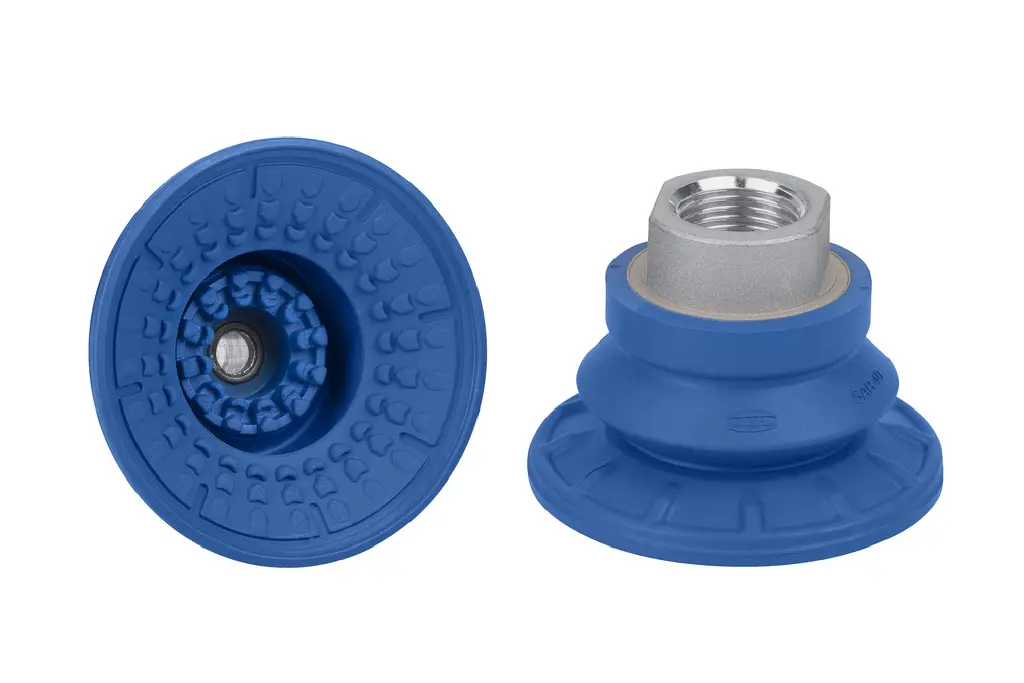

SAB 40 HT1-60 G1/4-IG
Part no.: 10.01.06.02724
Bellows suction cup (round) for markless handling of workpieces
Price
$54.58
excl. VAT, shipping & packagingSpecifications
| Size | 40 |
|---|---|
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-IG |
| Number of folds | 1.5 |
Product family
Suction area (Ø) from 22 mm to 125 mm
| Nominal diameter dn | 3.5 – 9 mm |
|---|---|
| Outside diameter D1 | 22 – 94 mm |
| Diameter Dmax(S) | 24 – 135 mm |
| Diameter Ds | 20.6 – 126 mm |
| Thread G1 | G1/4"-F, G3/8"-F, G1/4"-M, G3/8"-M, G1/2"-F |
| Height H | 25 – 72.8 mm |
| Thread length LG1 | 9.5 – 20 mm |
| Key width SW1 | 16 – 24 mm |
| Spring stroke Z | 5.8 – 32 mm |
