Schmalz part

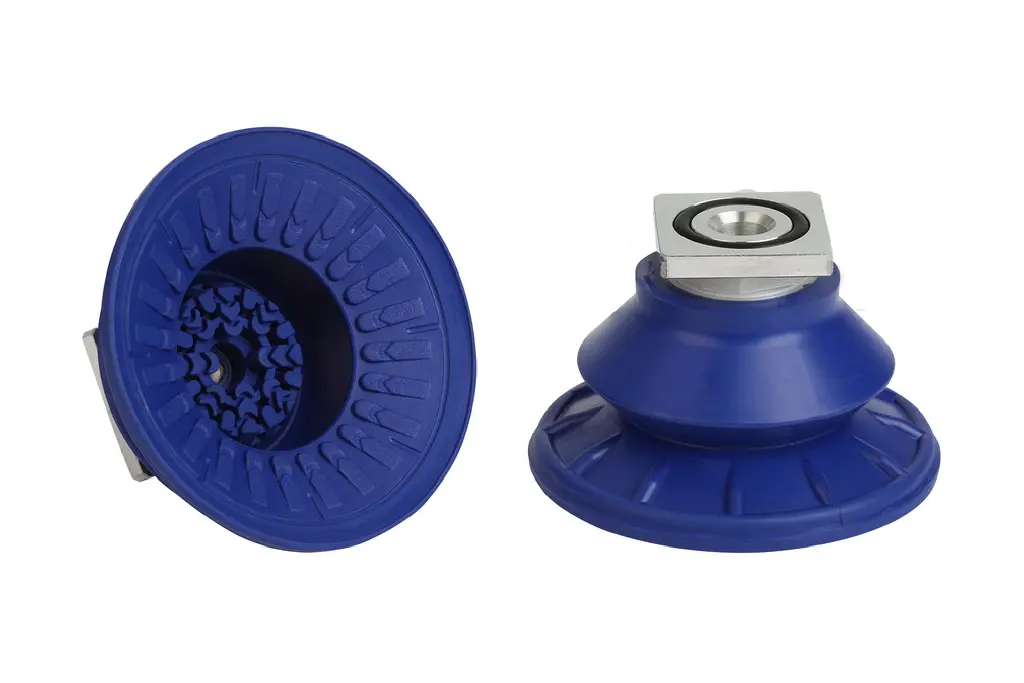

SAB 80 NBR-60 RA
Part no.: 10.01.06.01057
Bellows suction cup (round) for very dynamic handling of smooth and oily workpieces
Price
$50.57
excl. VAT, shipping & packagingSpecifications
| Size | 80 |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | Rectangular adapter |
| Number of folds | 1.5 |
Product family
Suction area (Ø) from 22 mm to 125 mm
| Nominal diameter dn | 3.5 – 9 mm |
|---|---|
| Outside diameter D1 | 22 – 94 mm |
| Diameter Dmax(S) | 24 – 135 mm |
| Diameter Ds | 20.6 – 126 mm |
| Height H | 25 – 72.8 mm |
| Spring stroke Z | 5.8 – 32 mm |
| Suction force (-600mbar) | 16 – 250 N |
| Pull-off force | 24 – 558 N |
| Lateral force | 18 – 410 N |
