Schmalz part

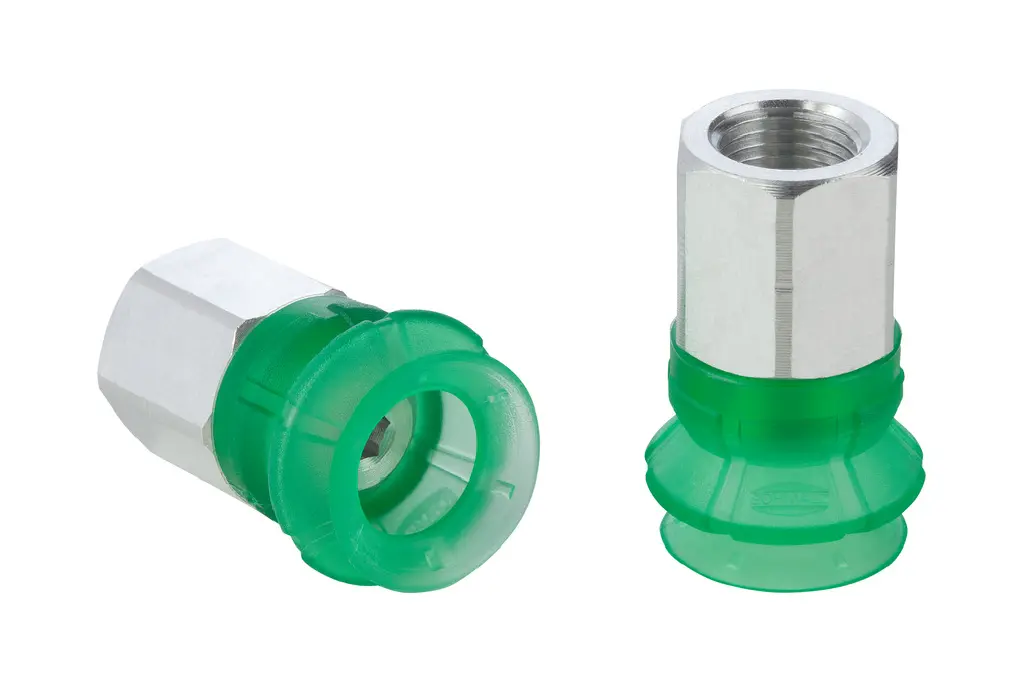

SPB1 20 ED-65 NPT1/8-IG
Part no.: 10.01.06.04947
Bellows suction cup (round) for very uneven workpieces
Price
$18.67
excl. VAT, shipping & packagingSpecifications
| Size | 20 |
|---|---|
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | NPT1/8"-F |
| Number of folds | 1.5 |
Product family
Bellows suction cups with a round shape are particularly suited for handling uneven and arched workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
| Weight | 0.03 – 802.8 g |
|---|---|
| Height H | 4.5 – 86.5 mm |
| Spring stroke Z | 1 – 45.5 mm |
| Number of folds | 1.5 – 4.5 |
| Suction cup material | Nitrile rubber NBR, Silicone SI, Vulkollan VU1, Natural rubber NK, Silicone SI conductive … |
| Diameter Dmax(S) | 4 – 177 mm |
| Diameter Ds | 1.9 – 150 mm |
| Size | 2 – 150 |
| Internal diameter d | 1.7 – 20 mm |
