Schmalz part

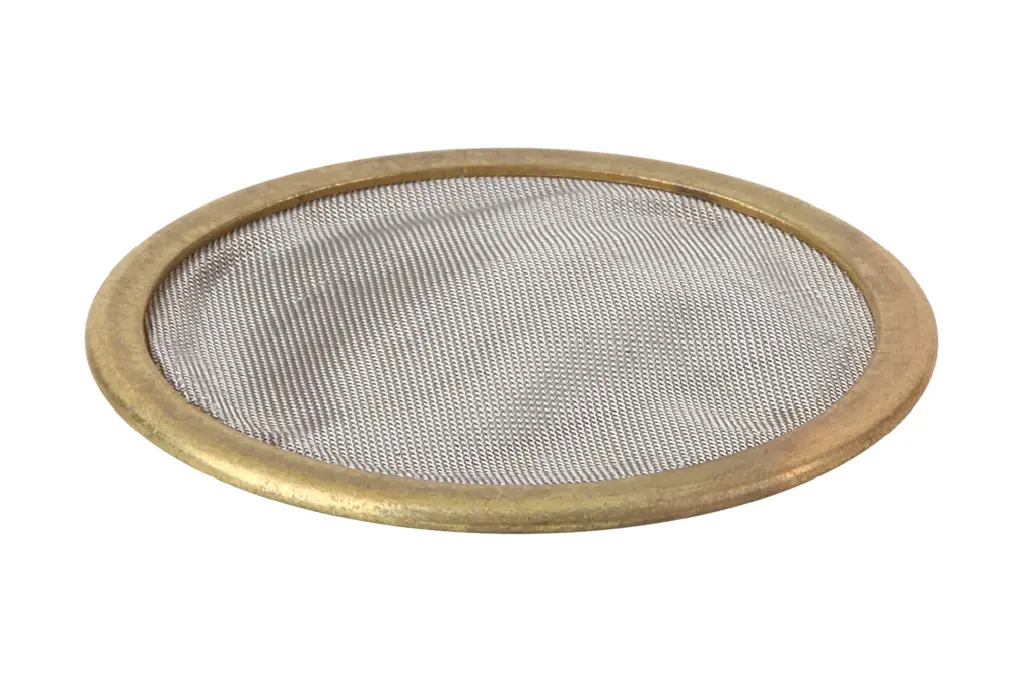

SIEB 17x0.8 MS-A2 103 0.103/0.07
Part no.: 10.07.01.00320
Screen protects the vacuum system from contamination
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Outside diameter D | 17 (mm) |
|---|---|
| Length L | 0.8 (mm) |
| Material | Brass / stainless steel |
| Filter pore size | 103 (µm) |
| Mesh size | 0.103 (mm) |
| Wire diameter | 0.06 (mm) |
Product family
Bellows suction cups with a round shape are particularly suited for handling uneven and arched workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
| Weight | 0.03 – 802.8 g |
|---|---|
| Height H | 4.5 – 86.5 mm |
| Spring stroke Z | 1 – 45.5 mm |
| Number of folds | 1.5 – 4.5 |
| Suction cup material | Nitrile rubber NBR, Silicone SI, Vulkollan VU1, Natural rubber NK, Silicone SI conductive … |
| Diameter Dmax(S) | 4 – 177 mm |
| Diameter Ds | 1.9 – 150 mm |
| Size | 2 – 150 |
| Internal diameter d | 1.7 – 20 mm |
