Schmalz part

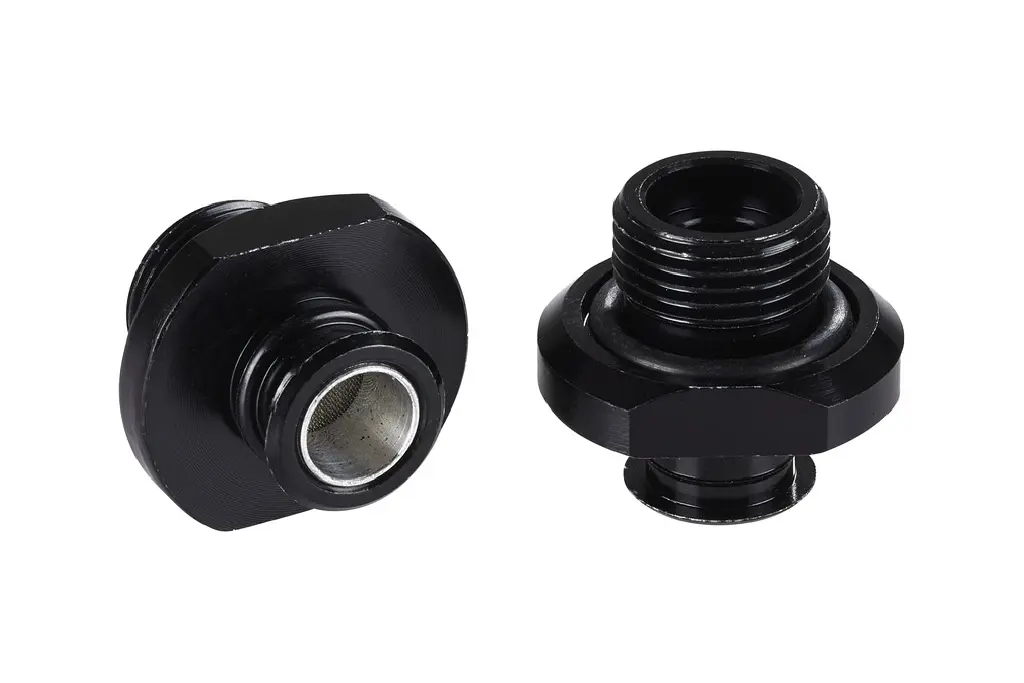

SA-NIP N044 G1/4-AG DN800
Part no.: 10.01.06.05750
Suction cup connection nipple
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Nipple family | N 044 |
|---|---|
| Thread G1 | G1/4-AG |
| Length L1 | 24 (mm) |
| Fitting length | 6 (mm) |
| Nominal diameter dn | 8 (mm) |
| Material | Aluminum |
Product family
Bellows suction cups with a round shape are particularly suited for handling uneven and arched workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
| Weight | 0.03 – 802.8 g |
|---|---|
| Height H | 4.5 – 86.5 mm |
| Spring stroke Z | 1 – 45.5 mm |
| Number of folds | 1.5 – 4.5 |
| Suction cup material | Nitrile rubber NBR, Silicone SI, Vulkollan VU1, Natural rubber NK, Silicone SI conductive … |
| Diameter Dmax(S) | 4 – 177 mm |
| Diameter Ds | 1.9 – 150 mm |
| Size | 2 – 150 |
| Internal diameter d | 1.7 – 20 mm |
