Schmalz part

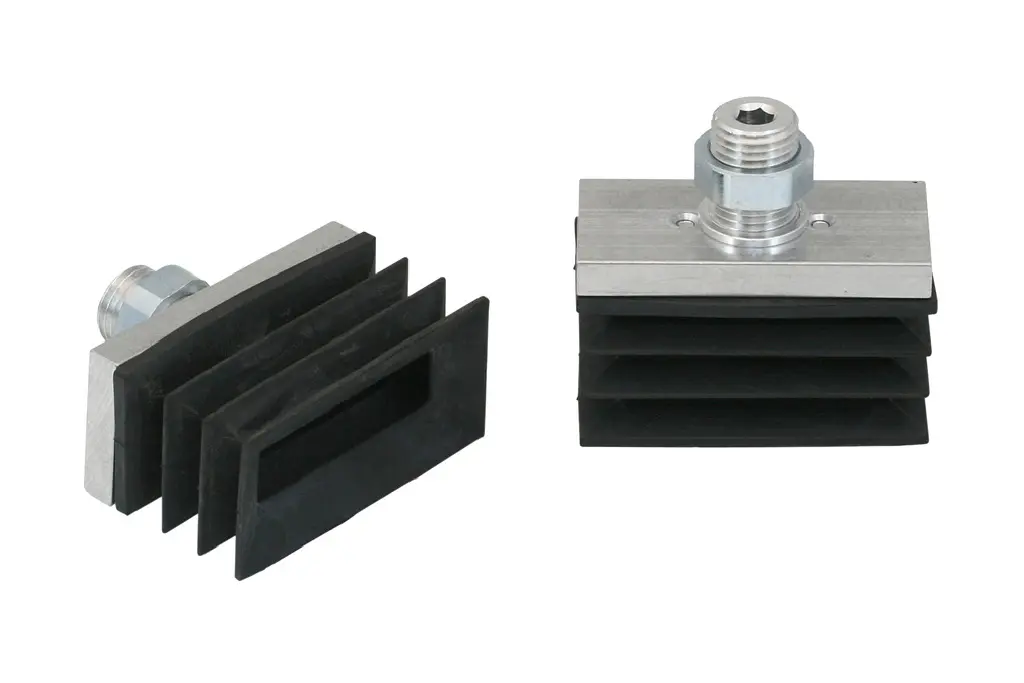

FSGB-R 52x25 NBR-50 G1/4-AG
Part no.: 10.01.06.02281
Bellows suction cup (rectangular)
Price
$148.06
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 52 x 25 |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 50 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-AG |
| Number of folds | 2.5 |
Product family
Bellows suction cups with a round shape are particularly suited for handling uneven and arched workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
| Weight | 0.03 – 802.8 g |
|---|---|
| Height H | 4.5 – 86.5 mm |
| Spring stroke Z | 1 – 45.5 mm |
| Number of folds | 1.5 – 4.5 |
| Suction cup material | Nitrile rubber NBR, Silicone SI, Vulkollan VU1, Natural rubber NK, Silicone SI conductive … |
| Diameter Dmax(S) | 4 – 177 mm |
| Diameter Ds | 1.9 – 150 mm |
| Size | 2 – 150 |
| Internal diameter d | 1.7 – 20 mm |
