Schmalz part

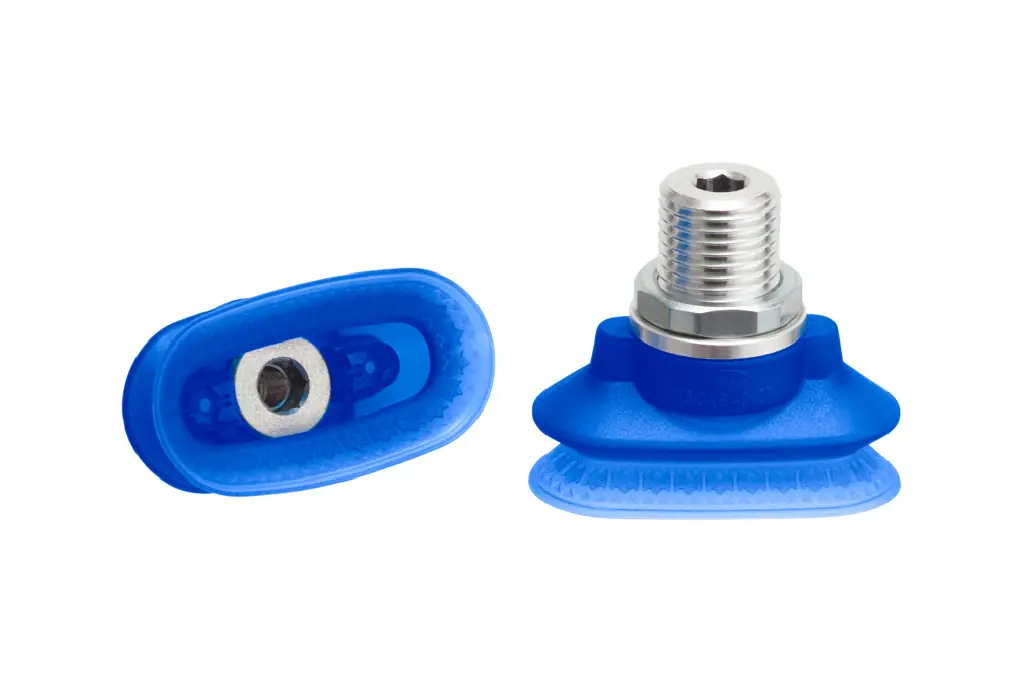

SAOXB 40x20 ED-85 G3/8-AG
Part no.: 10.01.06.05986
High-speed bellows suction pad for max. dynamics on highly curved and oiled surfaces
Price
$56.95
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 40x20 |
|---|---|
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |
| Number of folds | 1.5 |
| Nipple material | Aluminum |
Product family
Bellows suction cups with an oval shape are designed for long and narrow workpieces. Bellows suction cups are used if you need to handle workpieces with different heights, uneven surfaces or even fragile parts.
| Length L2 | 4.8 – 111 mm |
|---|---|
| Length L1 | 18.2 – 140 mm |
| Weight | 0.1 – 71.5 g |
| Width B1 | 13.7 – 65 mm |
| Width B2 | 5 – 36 mm |
| Bmax(S) | 14 – 68.5 mm |
| Suction cup width Bs | 12.5 – 65 mm |
| Height H | 13 – 34.4 mm |
| Lmax.(S) | 18.5 – 142 mm |
