Schmalz part

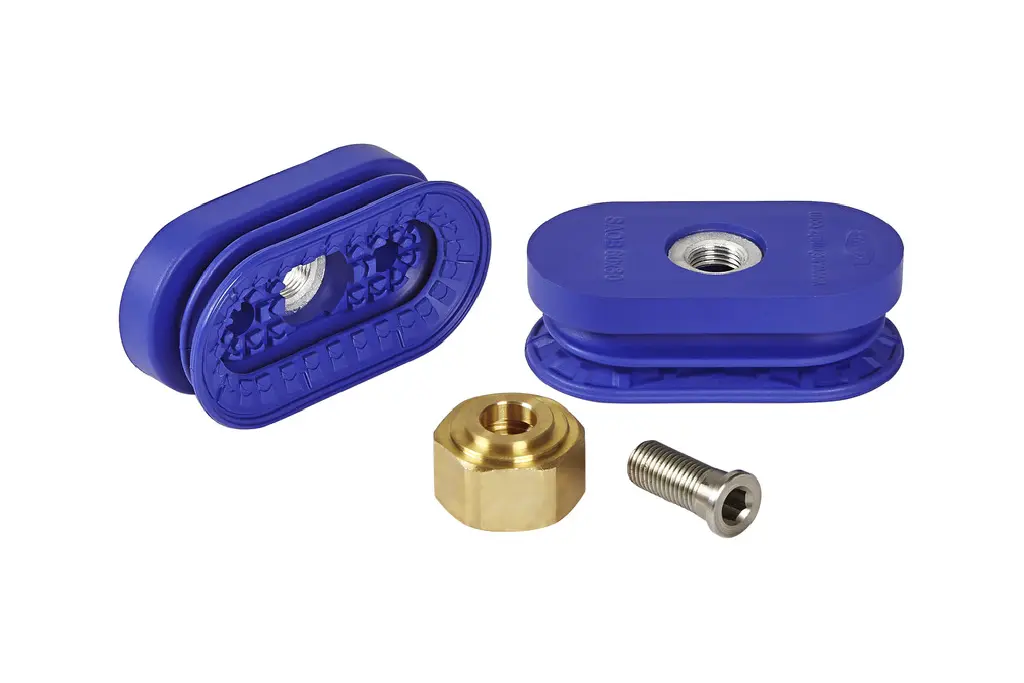

SAOB 60x30 NBR-60 G1/4-IG MOD
Part no.: 10.01.06.04898
Bellows suction cup (oval) for high dynamic on curved, oily surfaced workpieces
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Suction cup material | Nitrile rubber NBR |
|---|---|
| Material hardness [Shore A] | 60 (Shore A) |
| Connection | G1/4-IG |
| Number of folds | 1.5 |
Product family
Bellows suction cups with an oval shape are designed for long and narrow workpieces. Bellows suction cups are used if you need to handle workpieces with different heights, uneven surfaces or even fragile parts.
| Length L2 | 4.8 – 111 mm |
|---|---|
| Length L1 | 18.2 – 140 mm |
| Weight | 0.1 – 71.5 g |
| Width B1 | 13.7 – 65 mm |
| Width B2 | 5 – 36 mm |
| Bmax(S) | 14 – 68.5 mm |
| Suction cup width Bs | 12.5 – 65 mm |
| Height H | 13 – 34.4 mm |
| Lmax.(S) | 18.5 – 142 mm |
