Schmalz part

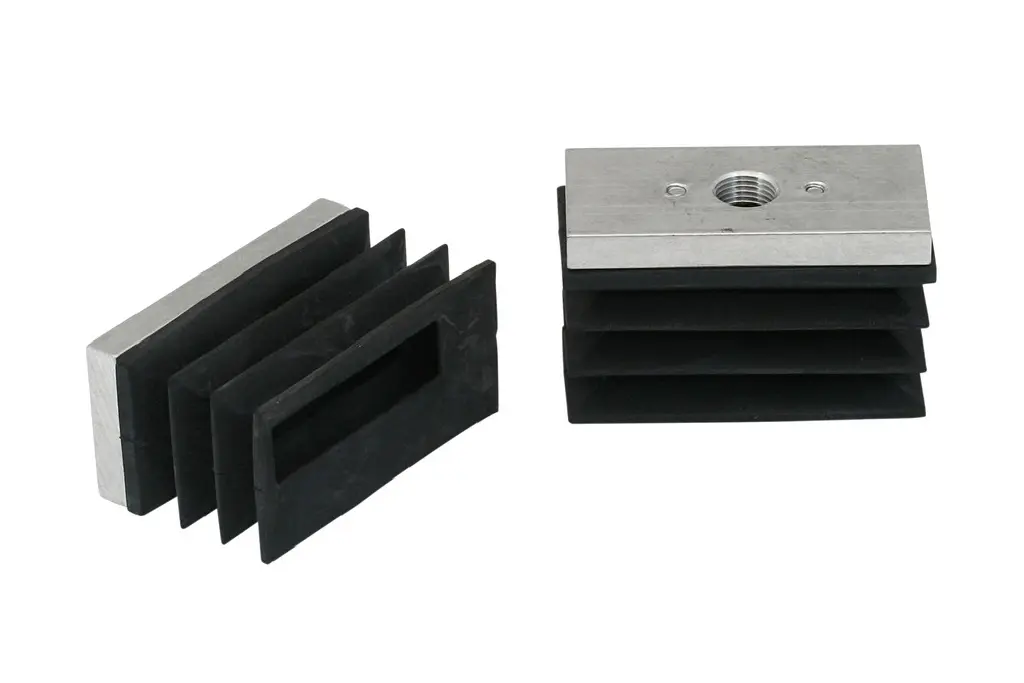

FSGB-R 52x25 NBR-50 G1/8-IG
Part no.: 10.01.06.02287
Bellows suction cup (rectangular)
Price
$144.10
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 52 x 25 |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 50 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/8-IG |
| Number of folds | 2.5 |
Product family
Suction area (LxW) from 52 x 25 mm to 60 x 29 mm
| Width B2 | 10 – 15 mm |
|---|---|
| Width B1 | 25 – 29 mm |
| Bmax(S) | 27.5 – 32 mm |
| Suction cup width Bs | 25 – 29 mm |
| Thread G1 | G1/4"-M, G1/8"-F |
| Height H | 32 – 50 mm |
| Length L2 | 37 – 45 mm |
| Length L1 | 52 – 60 mm |
| Thread length LG1 | 6 – 10.5 mm |
