Schmalz part

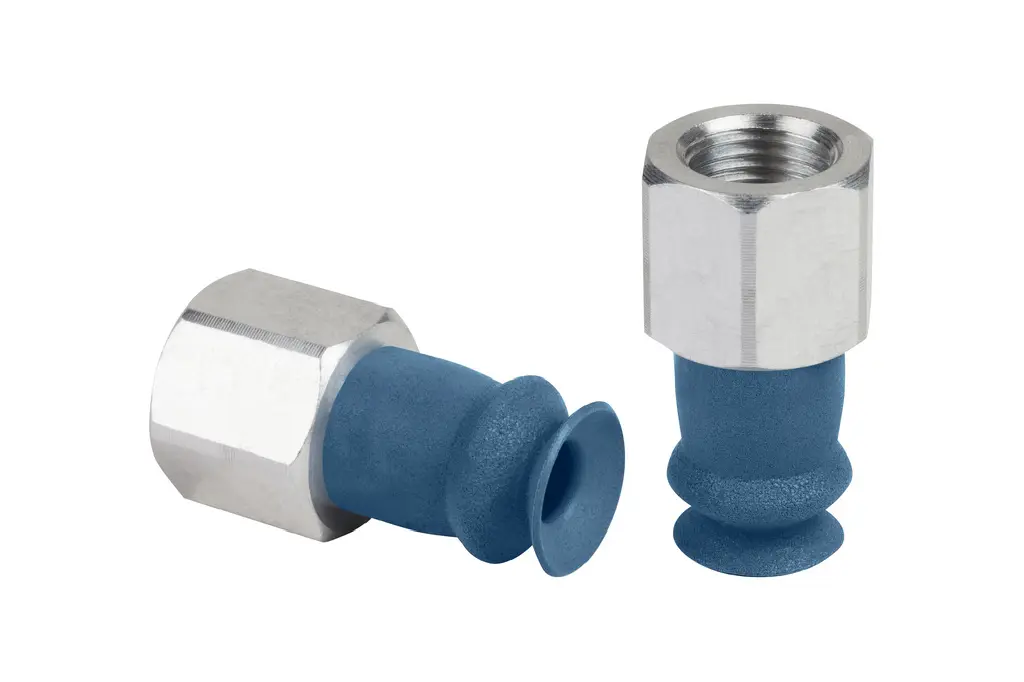

FSGA 11 SI-MD-55 G1/8-IG
Part no.: 10.01.06.04195
Bellows suction cup (round) with optimal adaptation to uneven surfaces
Price
$14.83
excl. VAT, shipping & packagingSpecifications
| Size | 11 |
|---|---|
| Suction cup material | Silicone SI metal detectable |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Nipple material | Aluminum |
| Connection | G1/8"-F |
| Number of folds | 1.5 |
| Product family | FSGA |
Product family
Suction area (Ø) 11 to 33 mm
| d2 | 5 – 17 mm |
|---|---|
| Diameter Dmax(S) | 13 – 38 mm |
| Nominal diameter dn | 2.5 – 4.4 mm |
| Diameter Ds | 10.4 – 30 mm |
| Thread G1 | M5-M, G1/8"-M, G1/8"-F, G1/4"-F, G1/4"-M |
| Height H | 20.2 – 42 mm |
| Thread length LG1 | 5 – 12 mm |
| Key width SW1 | 7 – 17 mm |
| Spring stroke Z | 4 – 9 mm |
