Schmalz part

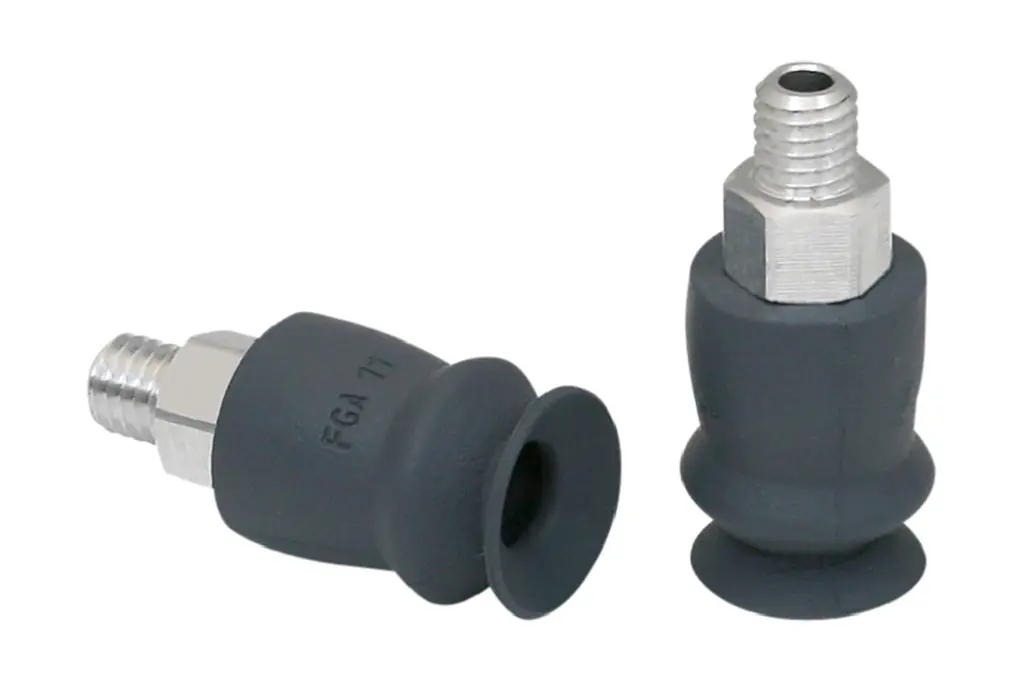

FSGA 11 NK-45 M5-AG
Part no.: 10.01.06.00406
Bellows suction cup (round) with optimal adaptation to uneven surfaces
Price
$13.09
excl. VAT, shipping & packagingSpecifications
| Size | 11 |
|---|---|
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-M |
| Number of folds | 1.5 |
| Product family | FSGA |
Product family
Suction area (Ø) from 2 mm to 78 mm
| d2 | 1.3 – 54 mm |
|---|---|
| Diameter Dmax(S) | 4 – 84.5 mm |
| Nominal diameter dn | 1 – 8.2 mm |
| Diameter Ds | 1.9 – 74 mm |
| Thread G1 | G1/8"-F, G1/4"-F, M5-M, G1/8"-M, G1/4"-M … |
| Height H | 6.5 – 62 mm |
| Thread length LG1 | 3 – 12 mm |
| Key width SW1 | 5 – 21 mm |
| Spring stroke Z | 1 – 16 mm |
