Schmalz part
FSG 30 VU1-72 G1/4-IG
Part no.: 10.01.06.00166

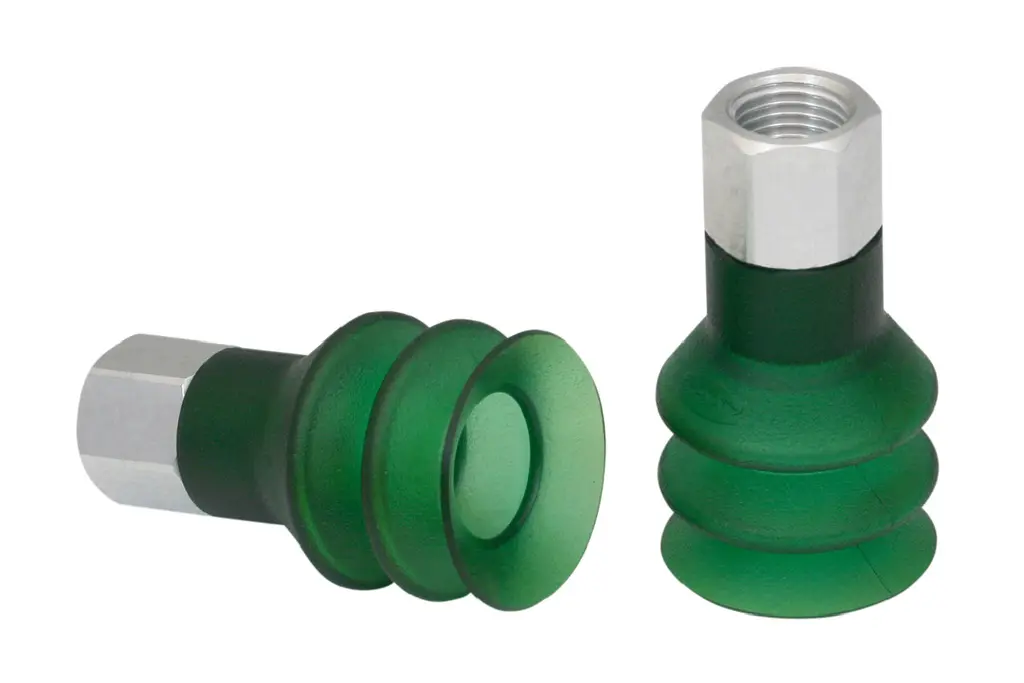

Bellows suction cup (round) for very uneven workpieces
Price
$99.81
excl. VAT, shipping & packagingSpecifications
| Size | 30 |
|---|---|
| Suction cup material | Vulkollan VU1 |
| Material hardness [Shore A] | 72 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4"-F |
| Number of folds | 2.5 |
Product family
Suction area (Ø) from 30 mm to 85 mm
| d2 | 15 – 51 mm |
|---|---|
| Nominal diameter dn | 3.5 – 6 mm |
| Diameter Dmax(S) | 31.5 – 90 mm |
| Diameter Ds | 29 – 80.2 mm |
| Thread G1 | G1/4"-F, G1/4"-M |
| Height H | 45 – 100 mm |
| Thread length LG1 | 10 – 12 mm |
| Key width SW1 | 17 – 22 mm |
| Spring stroke Z | 15 – 38 mm |
