Schmalz part
FSG 20 HT1-60 G1/8-AG
Part no.: 10.01.06.01239

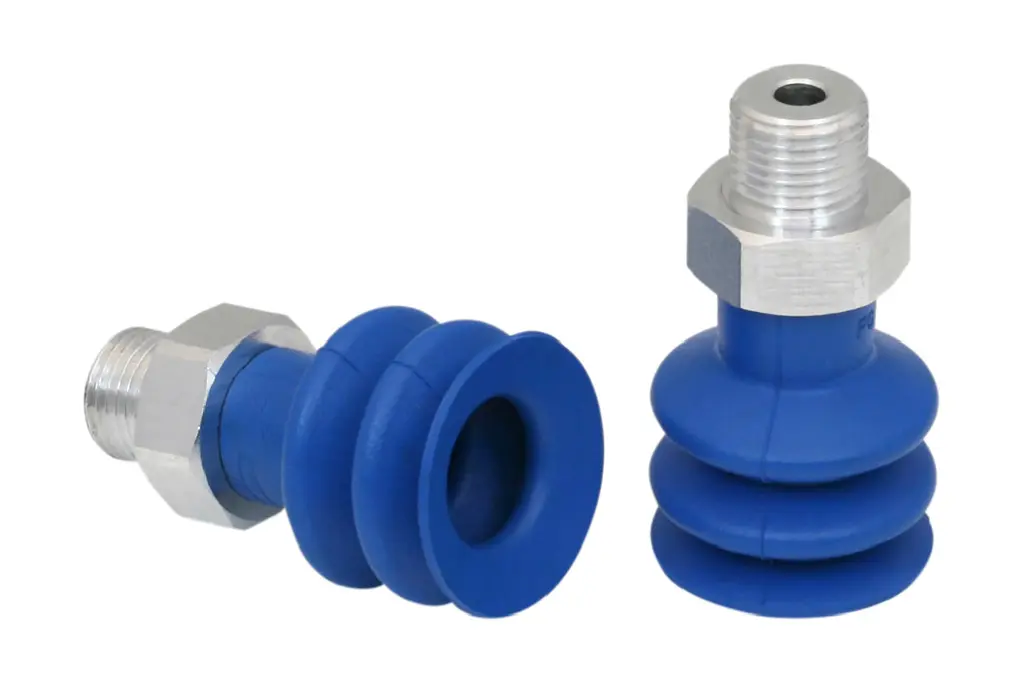

Bellows suction cup (round) for very uneven workpieces
Price
$17.27
excl. VAT, shipping & packagingSpecifications
| Size | 20 |
|---|---|
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/8"-M |
| Number of folds | 2.5 |
| Product family | FSG |
Product family
Suction area (Ø) from 3 mm to 88 mm
| d2 | 1.8 – 29.5 mm |
|---|---|
| Nominal diameter dn | 1 – 8.2 mm |
| Diameter Dmax(S) | 4 – 95.5 mm |
| Diameter Ds | 3 – 89 mm |
| Thread G1 | G1/8"-F, G1/4"-F, M5-M, G1/8"-M, G1/4"-M … |
| Height H | 8.7 – 101.5 mm |
| Thread length LG1 | 3 – 12 mm |
| Key width SW1 | 5 – 21 mm |
| Spring stroke Z | 1.1 – 34 mm |
