Schmalz part

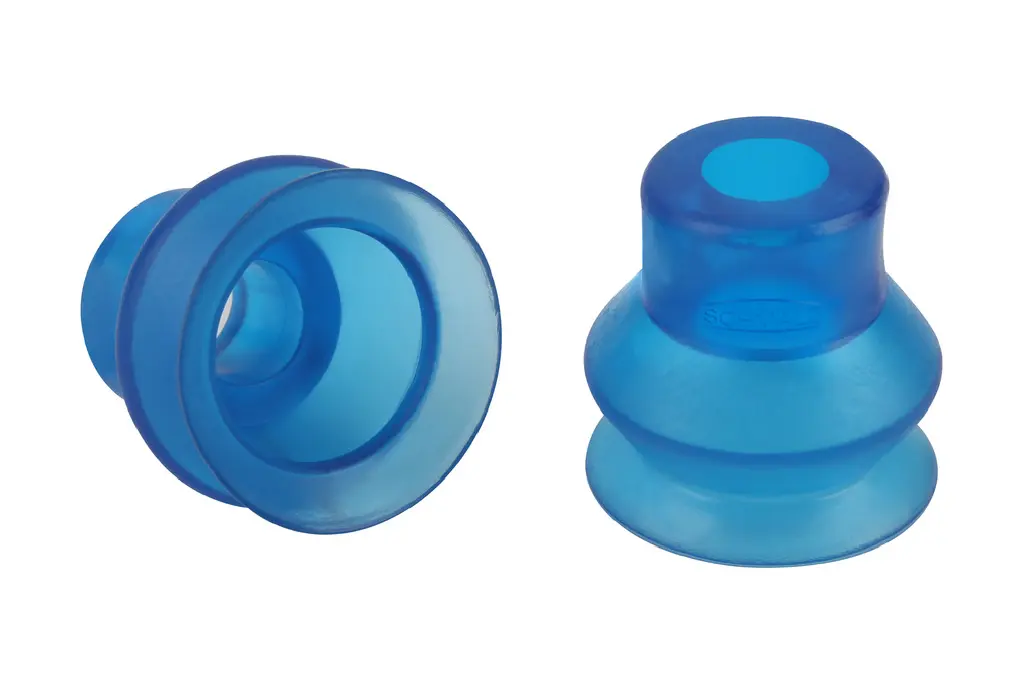

FGA 19 PVC-50 N056
Part no.: 10.01.06.01975
Bellows suction cup (round) with optimal adaptation to uneven surfaces
Price
$6.71
excl. VAT, shipping & packagingSpecifications
| Size | 19 |
|---|---|
| Suction cup material | Polyvinyl chloride PVC |
| Material hardness [Shore A] | 50 (Shore A) |
| Number of folds | 1.5 |
Product family
Suction area (Ø) from 13 mm to 22 mm
| Internal diameter d | 4 – 6.6 mm |
|---|---|
| d2 | 6.6 – 12.2 mm |
| Outside diameter D1 | 12.8 – 24.2 mm |
| Head diameter Dk | 7.9 – 13 mm |
| Diameter Dmax(S) | 14.5 – 25 mm |
| Diameter Ds | 12.9 – 21.5 mm |
| Height H | 15 – 19 mm |
| Height H2 | 6.6 – 9 mm |
| Spring stroke Z | 5.5 – 6.5 mm |
