Schmalz part

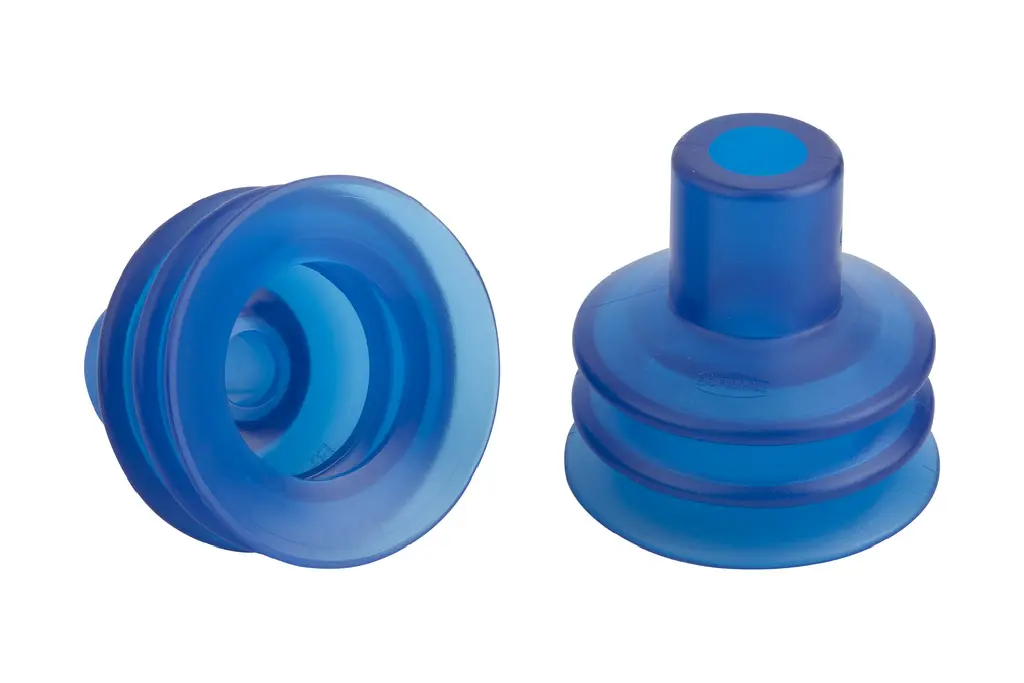

FG 40 PVC-50 N033
Part no.: 10.01.06.02468
Bellows suction cup (round) for very uneven workpieces
Price
$14.01
excl. VAT, shipping & packagingSpecifications
| Size | 40 |
|---|---|
| Suction cup material | Polyvinyl chloride PVC |
| Material hardness [Shore A] | 50 (Shore A) |
| Number of folds | 2.5 |
Product family
Suction area (Ø) from 18 mm to 50 mm
| Internal diameter d | 5 – 11 mm |
|---|---|
| d2 | 8.9 – 30.4 mm |
| Outside diameter D1 | 18.6 – 50.5 mm |
| Head diameter Dk | 10 – 18.7 mm |
| Diameter Dmax(S) | 20 – 54 mm |
| Diameter Ds | 16 – 50 mm |
| Height H | 23.5 – 47.2 mm |
| Height H2 | 2.8 – 20.7 mm |
| Spring stroke Z | 8.5 – 15.2 mm |
