Schmalz part

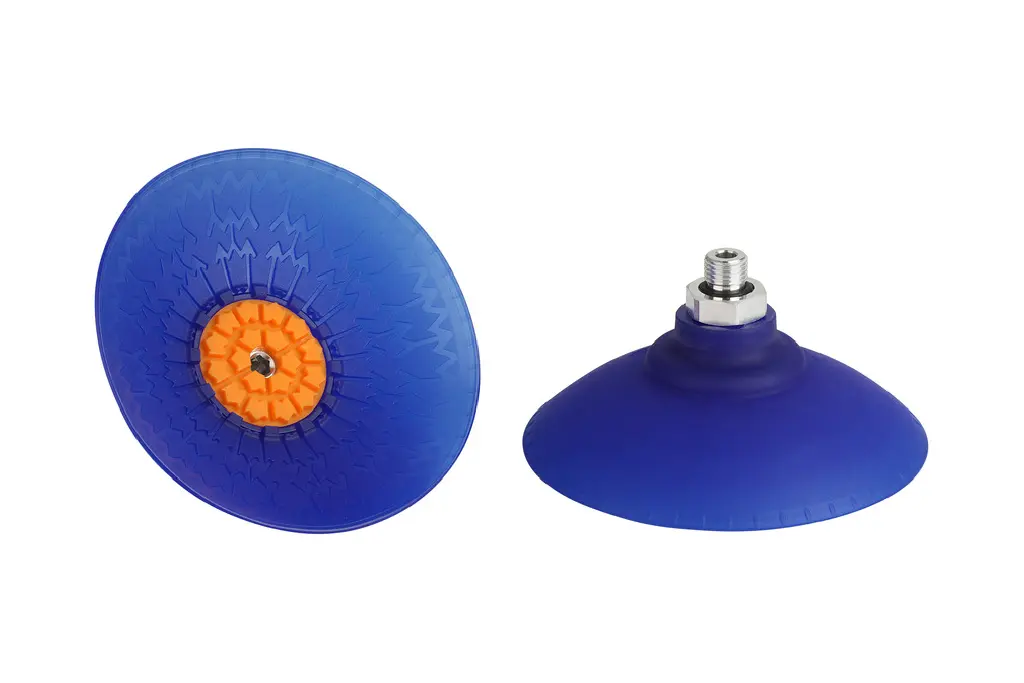

SAXM 115 ED-85 G1/4-AG
Part no.: 10.01.19.00061
Bell suction cup (round) for best adaptation to strongly curved surfaces
Price
$52.02
excl. VAT, shipping & packagingSpecifications
| Size | 115 |
|---|---|
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-AG |
Product family
Suction area (Ø) from 20 mm to 115 mm
| Nominal diameter dn | 4.1 – 6.1 mm |
|---|---|
| Diameter Dmax(S) | 26 – 129.4 mm |
| Diameter Ds | 21.8 – 115.2 mm |
| Height H | 23.7 – 60.1 mm |
| Spring stroke Z | 3 – 20 mm |
| Suction force (-600mbar) | 20 – 549 N |
| Lateral force | 15 – 320 N |
| Lateral force oily surface | 20 – 584 N |
| Volume | 1.55 – 141.5 cm³ |
