Schmalz part

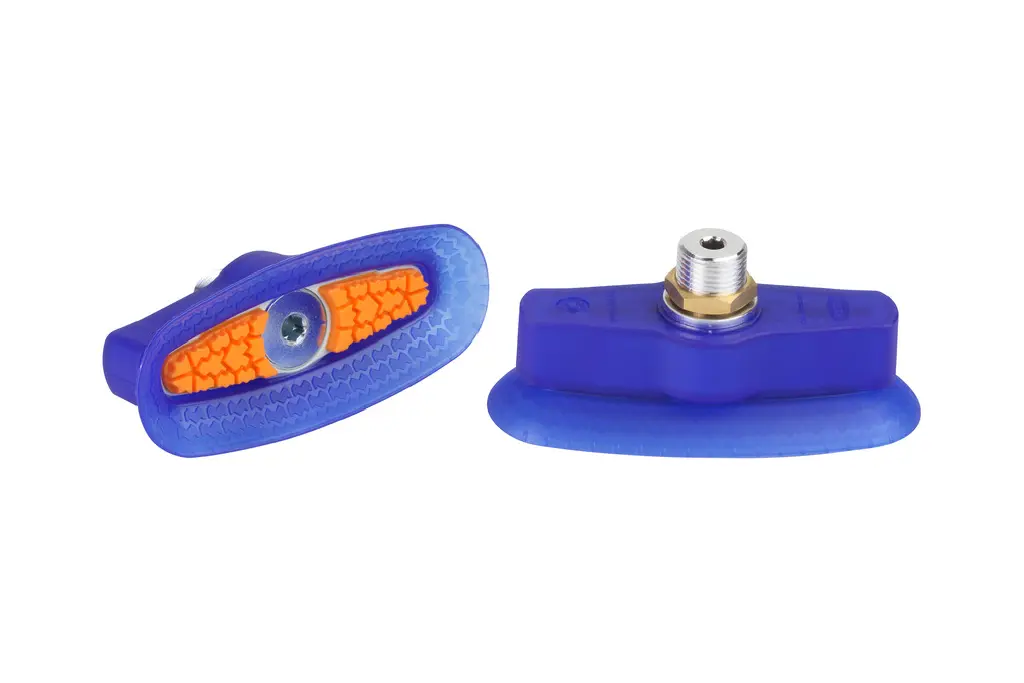

SAOXM 100x40 ED-85 G3/8-AG
Part no.: 10.01.24.00038
High-Speed bell shaped suction cup for (oval) very dynamic handling of smooth and oily workpieces
Price
$58.86
excl. VAT, shipping & packagingSpecifications
| Suction cup material | Elastodur ED |
|---|---|
| Material hardness [Shore A] | 85 (Shore A) |
| Nipple material | Aluminum |
| Connection | G3/8-AG |
| Additional function suction cup | Friction disc |
Product family
Suction area (LxW) 60 x 20 mm to 100 x 40 mm
| Bmax(S) | 24 – 51 mm |
|---|---|
| Suction cup width Bs | 18.7 – 41.6 mm |
| Nominal diameter dn | 4.1 – 6.1 mm |
| Height H | 29.8 – 45.7 mm |
| Lmax.(S) | 67 – 109 mm |
| Ls | 61.8 – 101.8 mm |
| Key width SW3 | 5 – 6 mm |
| Spring stroke Z | 4.5 – 7.3 mm |
| Suction force (-600mbar) | 56 – 173 N |
