Schmalz part

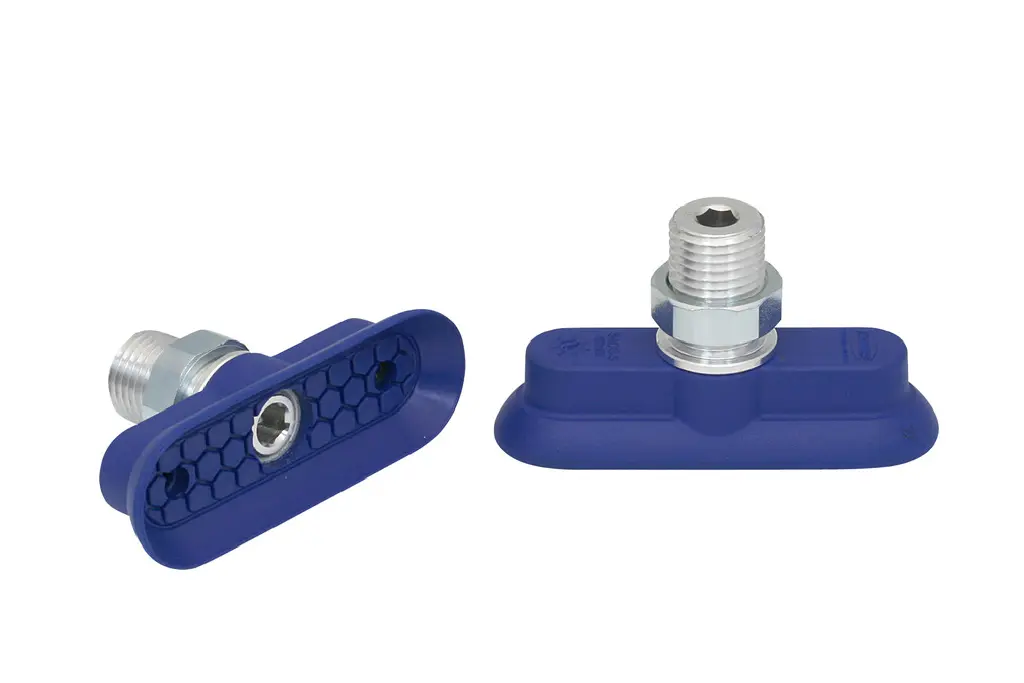

SAOG-S 60x20 NBR-60 G1/4-AG
Part no.: 10.01.01.12175
Bell suction cup (oval) for very dynamic handling of smooth and oily workpieces
Price
$46.35
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 60x20 |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-AG |
Product family
Bell suction cup (oval) for very dynamic handling of smooth and oily workpieces
| Bmax(S) | 25.8 – 46 mm |
|---|---|
| Suction cup width Bs | 20.9 – 40.6 mm |
| Height H | 15 – 33.5 mm |
| Lmax.(S) | 65.8 – 101 mm |
| Ls | 60.9 – 95.6 mm |
| Spring stroke Z | 5 – 6 mm |
| Suction force (-600mbar) | 56 – 165 N |
| Lateral force | 45 – 192 N |
| Lateral force oily surface | 30 – 110 N |
