Schmalz part

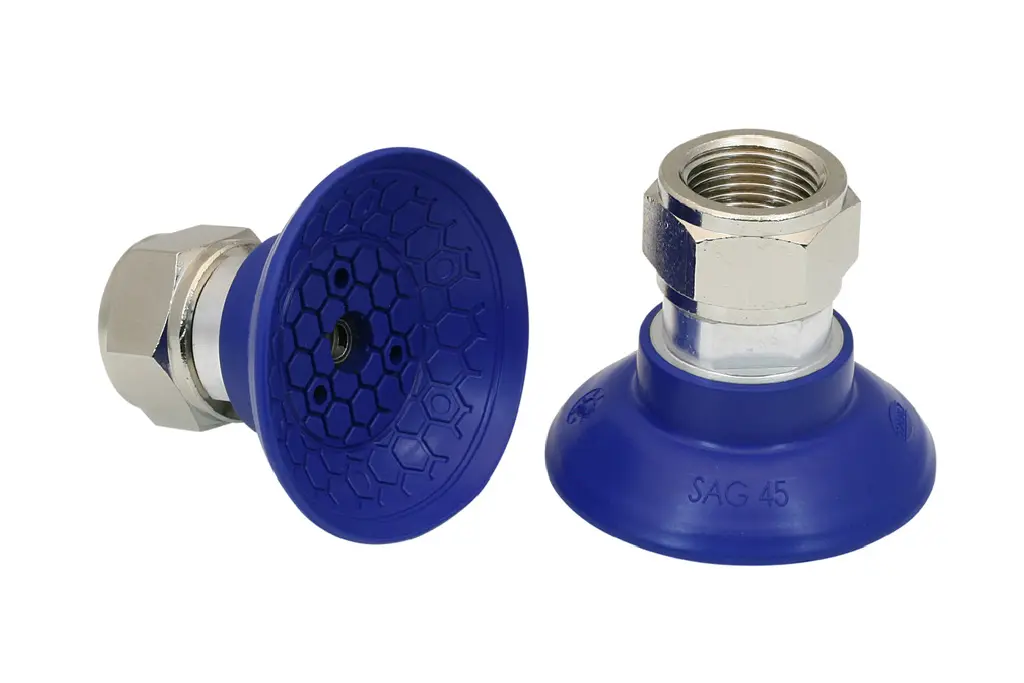

SAG 45 NBR-60 G3/8-IG
Part no.: 10.01.01.12258
Bell suction cup (round) for best adaptation to strongly curved surfaces
Price
$36.81
excl. VAT, shipping & packagingSpecifications
| Size | 45 |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | G3/8-IG |
Product family
The bell-shaped suction cups (round) enable the handling of curved and arched workpieces thanks to the perfect combination of a high stroke and maximum holding force. Bell-shaped suction cups, which are a combination of flexible bellows and flat suction cups, have a high holding force and adapt perfectly to uneven surfaces, ensuring a safe process.
| Weight | 2.8 – 52.7 g |
|---|---|
| Material | Aluminum, ST/ED, Steel / Elastodur, Brass |
| Shape | Self Locking, Frict elem with Self lock |
| Nominal diameter dn | 4.1 – 8.9 mm |
| Outside diameter D2 | 10.5 – 15 mm |
| Length L | 7.2 – 25.2 mm |
| Length L2 | 7.8 – 15.1 mm |
| Connection type | 45 – 65 |
| Thread G1 | G3/8"-F, G1/4"-F, G3/8"-M, G1/4"-M, M10-M … |
