Schmalz part

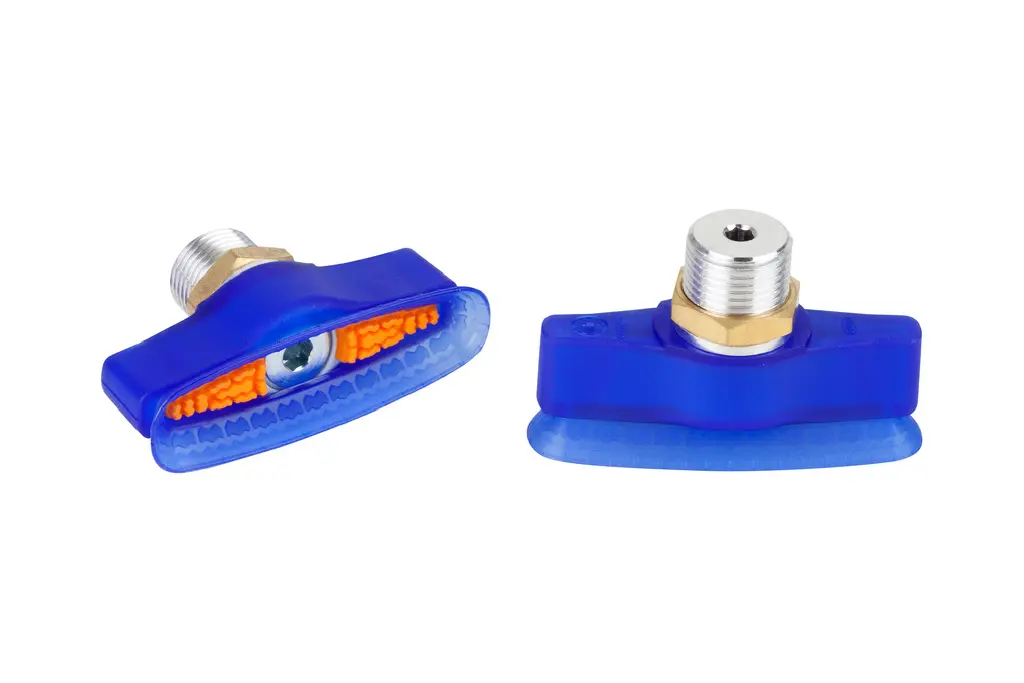

SAOXM 60x20 ED-85 G3/8-AG
Part no.: 10.01.24.00036
High-Speed bell shaped suction cup for (oval) very dynamic handling of smooth and oily workpieces
Price
$51.96
excl. VAT, shipping & packagingSpecifications
| Suction cup material | Elastodur ED |
|---|---|
| Material hardness [Shore A] | 85 (Shore A) |
| Nipple material | Aluminum |
| Connection | G3/8-AG |
| Additional function suction cup | Friction disc |
Product family
The bell-shaped suction cups (oval) enable the handling of narrow and strongly curved workpieces, thanks to the perfect combination of a high stroke and maximum holding force. As a combination of a flexible, bell-shaped suction cup and a flat suction cup with a strong holding force, bell-shaped suction cups adapt perfectly to uneven surfaces and can handle them in a safe process.
| Weight | 3.7 – 42.8 g |
|---|---|
| Material | Aluminum, Brass, Nitrile rubber NBR, Steel |
| Nominal diameter dn | 4.1 – 8.9 mm |
| Length L | 2 – 17.2 mm |
| Outside diameter D2 | 10.5 – 13 mm |
| Length L2 | 11 – 14.8 mm |
| Connection type | 045-AR, 055-AR |
| Shape | Self Locking |
| Key width SW1 | 16 – 22 mm |
