Schmalz part

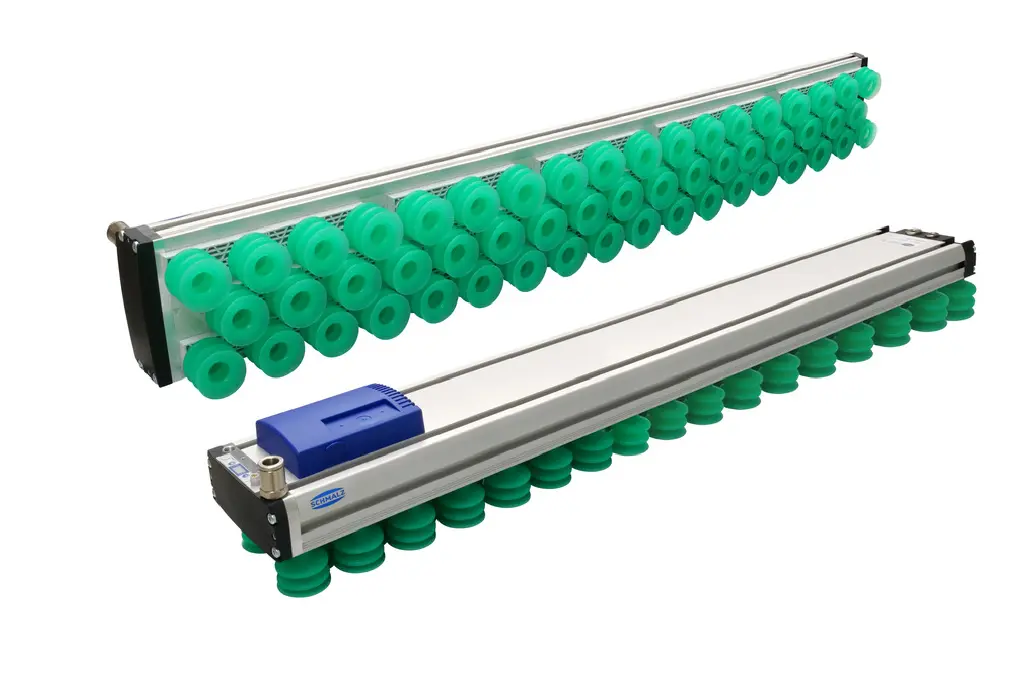

FXP-i-SVK 1234 3R54 SPB2-40P V0
Part no.: 10.01.38.06693
Intelligent area gripping system integrated pneum. vacuum generation and ball check valves
Price
$11,248.86
excl. VAT, shipping & packagingSpecifications
| Length L | 1234 (mm) |
|---|---|
| Width B | 130 (mm) |
| Length L1 | 1242 (mm) |
| Arrangement | 3R54 |
| Additional function area gripper | V0 |
| Number of suction cells | 66 |
| Additional function area gripper | 2x control valve vacuum / blow-off |
| Design vacuum generator | Multi-stage ejector SEMP |
| Construction vacuum switch | Normally open |
| Voltage DC | 24 V - DC |
| Operation mode | Digital air-saving function |
| Air consumption [l/min] | 875 (l/min) |
| Weight | 8 (kg) |
| Product family | FXP |
Product family
Suction area (LxB) from 442 x 130 mm to 1,432 x 130 mm
| Width B | 130 mm |
|---|---|
| Width B3 | 21.6 – 22 mm |
| Height H | 60 – 106 mm |
| Height H1 | 99 – 144 mm |
| Height H2 | 10 – 56 mm |
| Height H3 | 7.7 mm |
| Height H4 | 5.5 mm |
| Height H5 | 28 – 29 mm |
| Length L | 442 – 1432 mm |
