Schmalz part

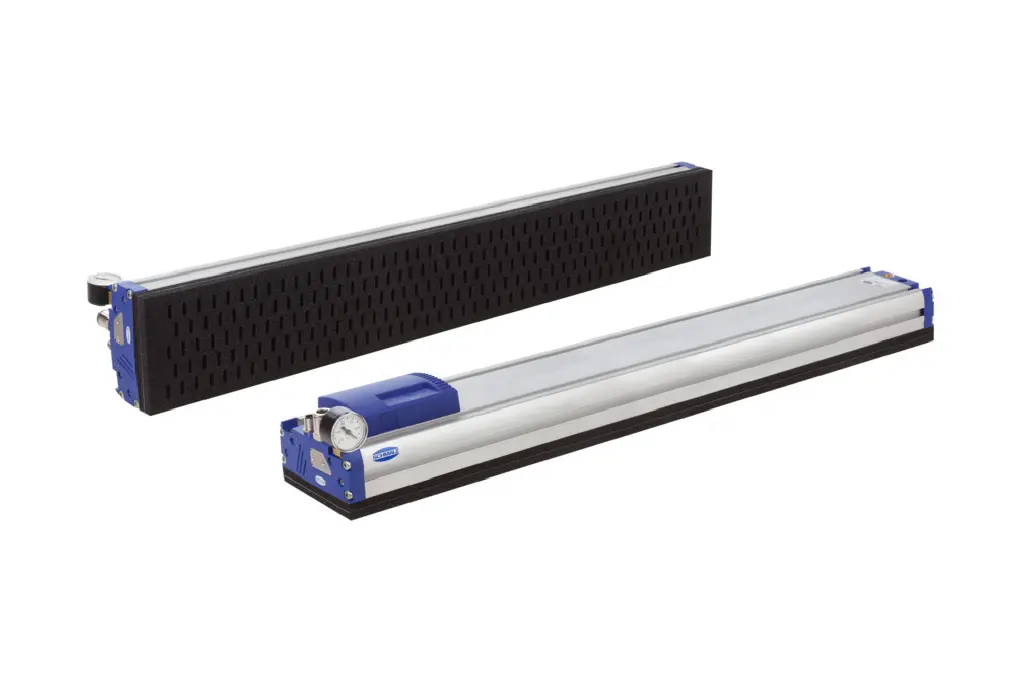

FXP-SW60 838 5R18 O10O10 F
Part no.: 10.01.38.00712
Vacuum area gripping system with integrated pneumatic vacuum generator and flow resistors
Price
$5,675.77
excl. VAT, shipping & packagingSpecifications
| Length L | 838 (mm) |
|---|---|
| Width B | 130 (mm) |
| Arrangement | 5R18 |
| Material type | Foam open, height 2 x 10 mm |
| Additional function area gripper | Filter |
| Number of suction cells | 220 |
| Design vacuum generator | Multi-stage ejector SEMP |
| Nozzle diameter | 0.6 (mm) |
| Air consumption [l/min] | 500 (l/min) |
| Weight | 3.8 (kg) |
| Product family | FXP |
Product family
Suction area (LxB) from 442 x 130 mm to 1,432 x 130 mm
| Width B | 130 mm |
|---|---|
| Width B3 | 21.6 – 22 mm |
| Height H | 60 – 106 mm |
| Height H1 | 99 – 144 mm |
| Height H2 | 10 – 56 mm |
| Height H3 | 7.7 mm |
| Height H4 | 5.5 mm |
| Height H5 | 28 – 29 mm |
| Length L | 442 – 1432 mm |
