Schmalz part

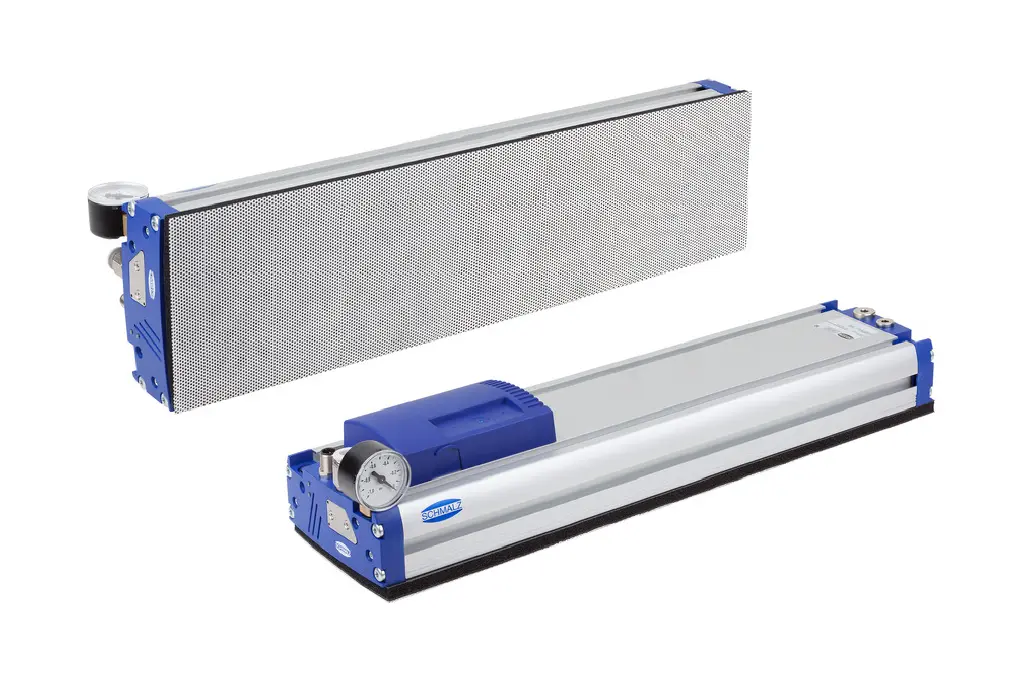

FXP-S-SVK 640 5R18 N10SU
Part no.: 10.01.38.02963
Vacuum area gripping system with integrated pneumatic vacuum ball check valves
Price
$6,554.78
excl. VAT, shipping & packagingSpecifications
| Length L | 640 (mm) |
|---|---|
| Width B | 130 (mm) |
| Arrangement | 5R18 |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Design vacuum generator | Multi-stage ejector SEMP |
| Construction vacuum switch | PNP switching |
| Voltage DC | 24 V - DC |
| Air consumption [l/min] | 375 (l/min) |
| Weight | 3.6 (kg) |
| Product family | FXP |
Product family
Suction area (LxB) from 442 x 130 mm to 1,432 x 130 mm
| Width B | 130 mm |
|---|---|
| Width B3 | 21.6 – 22 mm |
| Height H | 60 – 106 mm |
| Height H1 | 99 – 144 mm |
| Height H2 | 10 – 56 mm |
| Height H3 | 7.7 mm |
| Height H4 | 5.5 mm |
| Height H5 | 28 – 29 mm |
| Length L | 442 – 1432 mm |
