Schmalz part

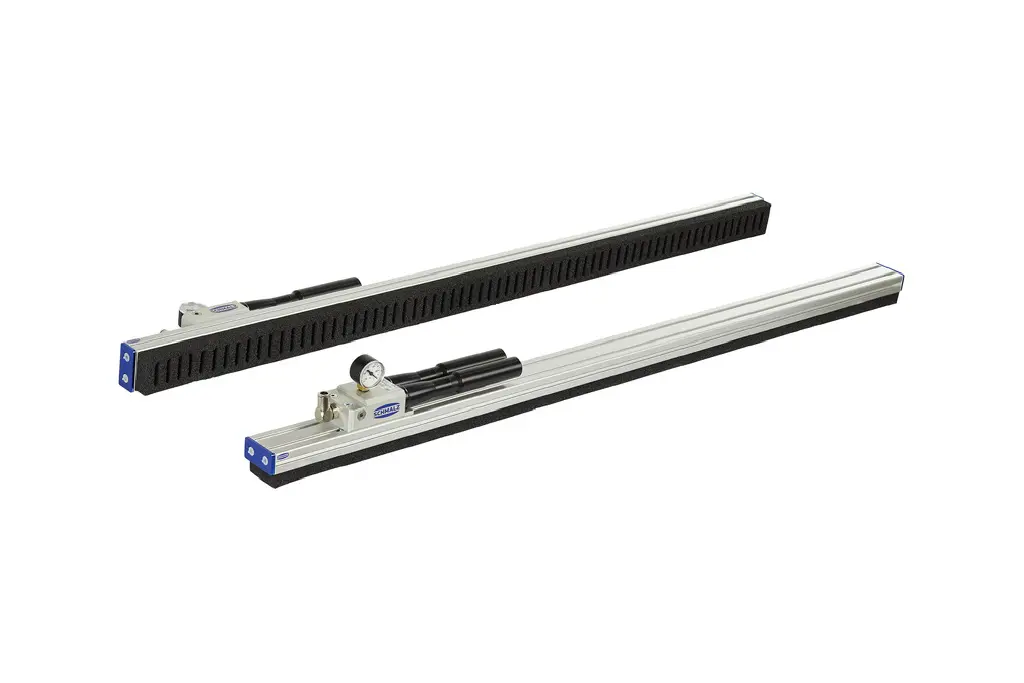

FXP-60-SW70 1234 1R18 O20
Part no.: 10.01.53.00053
60mm wide area gripper series incl. pneumat. Vacuum generation with integrated flow resistors
Price
$3,958.20
excl. VAT, shipping & packagingSpecifications
| Nozzle diameter | 0.7 (mm) |
|---|---|
| Length L | 1234 (mm) |
| Width B | 60 (mm) |
| Arrangement suction cells | 1 row, 18 mm |
| Material type | Foam open, height 20 mm |
| Design vacuum generator | Ejector module SEP |
| Size | 3 18 22 |
Product family
Gripper width 60 mm
| Width B | 60 mm |
|---|---|
| Width B2 | 54 mm |
| Width B3 | 16.3 mm |
| Height H | 50 mm |
| Height H1 | 102 mm |
| Height H2 | 20 mm |
| Height H3 | 9.75 mm |
| Height H4 | 6.75 mm |
| Height H5 | 45 mm |
