Schmalz part

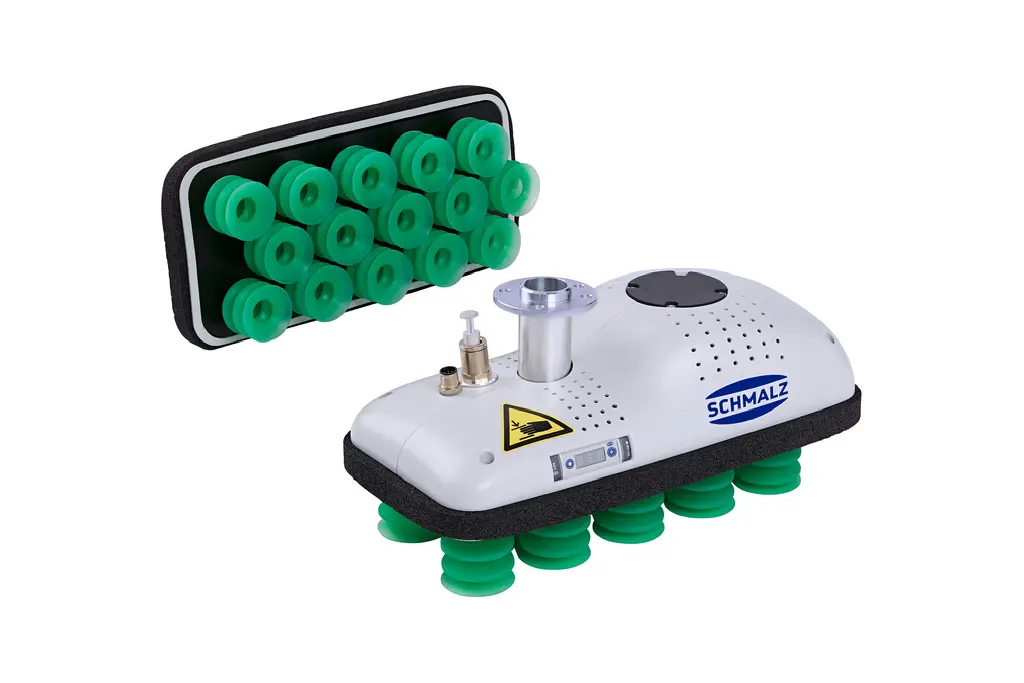

FXCB-SW150 297 3R54 SPB2 40 P VSi NO
Part no.: 10.01.43.00070
Vacuum area gripping system with integrated pneumatic vacuum generator and flow resistors
Price
$7,267.41
excl. VAT, shipping & packagingSpecifications
| Valve type | Flow restrictor |
|---|---|
| Nozzle diameter | 1.5 (mm) |
| Length L | 297 (mm) |
| Width B | 123.2 (mm) |
| Height H | 158 (mm) |
| Arrangement | 3R54 |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Additional function area gripper | Vacuum and pressure switch VSi |
| Design vacuum generator | Ejector module SEP |
| Control valve | Normally open |
| Weight | 2.2 (kg) |
| Construction vacuum switch | PNP switching |
Product family
Sealing element: Sealing foam or suction cups
| Width B | 123.2 – 130 mm |
|---|---|
| Width B1 | 159 mm |
| Nominal diameter dn | 10 mm |
| Height H | 131.4 – 158 mm |
| Height H1 | 137.4 – 164 mm |
| Height H2 | 20 – 47 mm |
| Length L | 297 – 300 mm |
| Length L1 | 331 mm |
| Length L2 | 99 – 114.4 mm |
