Schmalz part

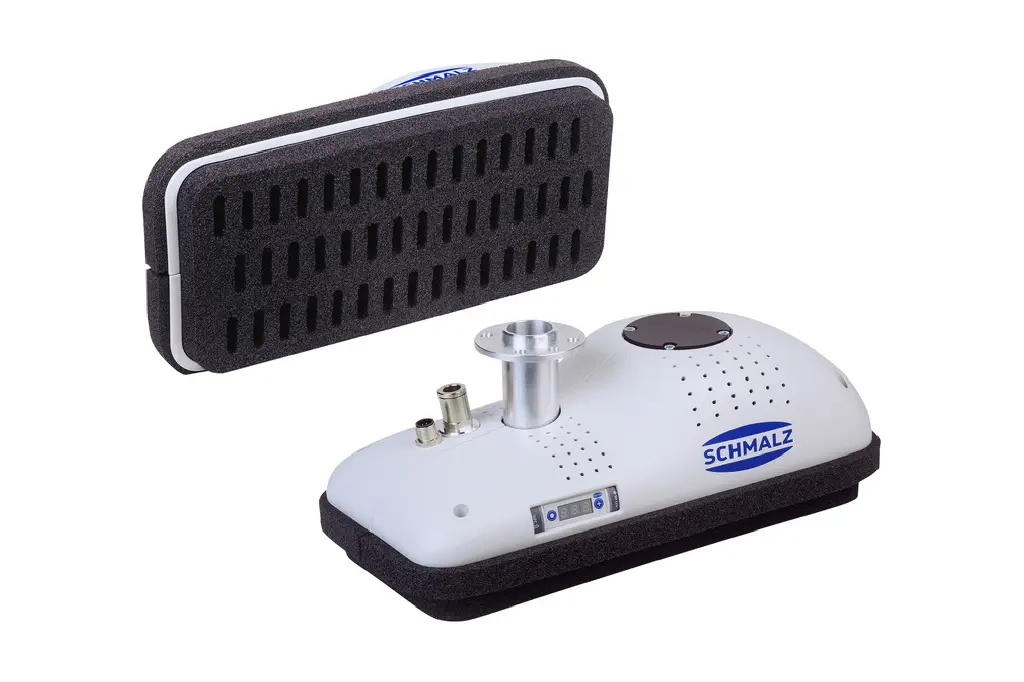

FXCB-SW110 300 3R18 O20 VSi NO
Part no.: 10.01.43.00016
Vacuum area gripping system with integrated pneumatic vacuum generator and flow resistors
Price
$6,756.88
excl. VAT, shipping & packagingSpecifications
| Valve type | Flow restrictor |
|---|---|
| Nozzle diameter | 1.1 (mm) |
| Length L | 300 (mm) |
| Width B | 130 (mm) |
| Height H | 131.4 (mm) |
| Arrangement | 3R18 |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Additional function area gripper | Vacuum and pressure switch VSi |
| Design vacuum generator | Ejector module SEP |
| Control valve | Normally open |
| Weight | 2 (kg) |
| Construction vacuum switch | NPN switching |
Product family
The area gripping system FXCB/FMCB is ideal for stationary handling tasks with collaborative robots. It is suitable for handling workpieces regardless of size and geometry. The area gripping system is equipped with an integrated pneumatic vacuum generation. Its extremely low weight and rounded shape make this gripper particularly well suited for HRC operation (Human-Robot-Collaboration). Thanks to the innovative product design featuring increased contact surface and reduced impact forces, the gripper fulfills the requirements of ISO TS 15066 (Safety standards for collaborative industrial robot systems).
| Width B | 34 – 144.2 mm |
|---|---|
| Height H | 0.39 – 127.5 mm |
| Length L | 82.1 – 439 mm |
