Schmalz part

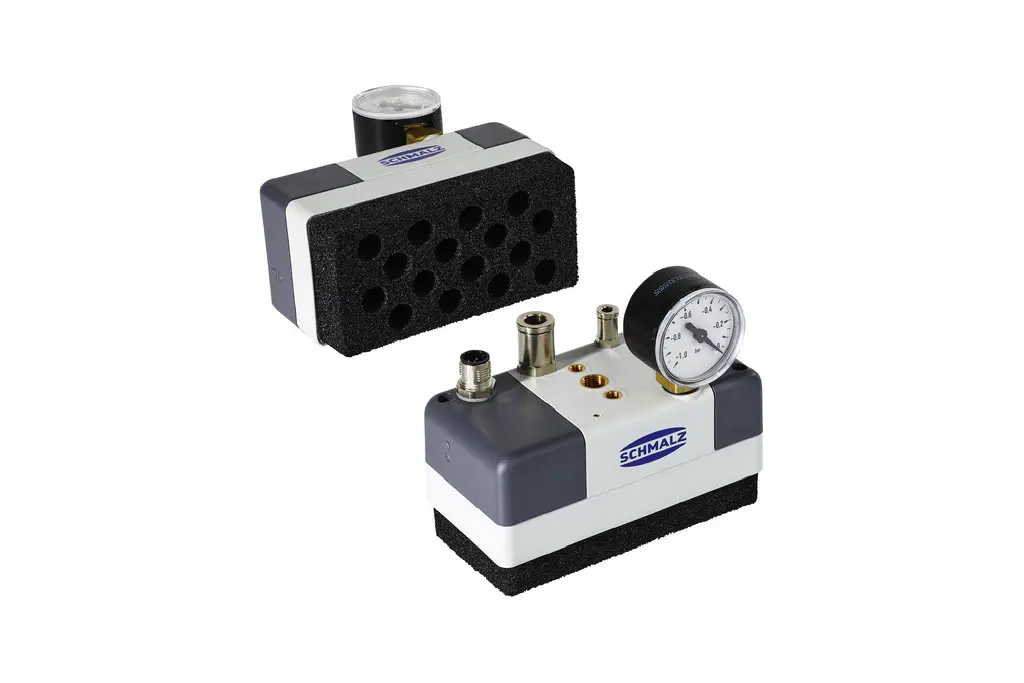

FQE Xc 120x60 SW50 O10
Part no.: 10.01.44.00370
Large-area vacuum gripping system with flow resistances
Price
$1,712.28
excl. VAT, shipping & packagingSpecifications
| Shape | Integrated vacuum generation |
|---|---|
| Function | controlled |
| Length L | 120 (mm) |
| Width B | 60 (mm) |
| Height H | 56 (mm) |
| Valve type | Flow restrictor |
| Nozzle diameter | 0.5 (mm) |
| Material type | Foam open, height 10 mm |
| Number of suction cells | 16 |
| Number of ejectors | 2 |
| Design vacuum generator | Ejector module SEP |
| Control valve | Normally open |
| Weight | 0.31 (kg) |
Product family
Gripping surface (LxW) from 120 x 60 mm to 300 x 130 mm
| Width B | 60 – 130 mm |
|---|---|
| Nominal diameter dn | 6 – 20 mm |
| Thread G1 | G1/8"-F, G1/4"-F |
| Thread G2 | M5-F |
| Height H | 56 – 88.1 mm |
| Height H1 | 101.5 – 133.7 mm |
| Height H2 | 10 – 24.3 mm |
| Length L | 120 – 300 mm |
| Hole spacing X1 | 104.4 – 282.4 mm |
