Schmalz part

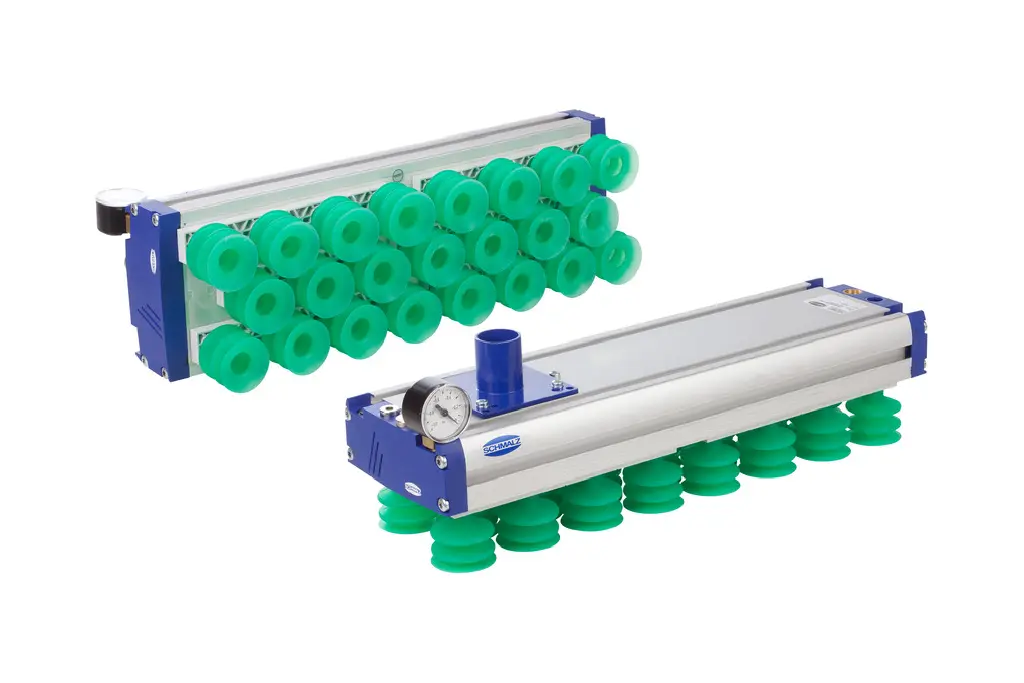

FMP-SVK 442 3R54 SPB2-40P G32
Part no.: 10.01.38.00311
Vacuum area gripping system for external vacuum generator, with ball check valves
Price
$2,645.73
excl. VAT, shipping & packagingSpecifications
| Length L | 442 (mm) |
|---|---|
| Width B | 130 (mm) |
| Arrangement | 3R54 |
| Shape fittings | Straight |
| Outside diameter D | 32 (mm) |
| Weight | 2.7 (kg) |
| Product family | FMP |
Product family
Suction area (LxB) from 442 x 130 mm to 1,432 x 130 mm
| Width B | 130 mm |
|---|---|
| Width B3 | 21.6 mm |
| Height H | 60 – 106 mm |
| Height H1 | 90 – 152 mm |
| Height H2 | 10 – 56 mm |
| Height H3 | 7.7 mm |
| Height H4 | 5.5 mm |
| Height H5 | 41 – 46 mm |
| Length L | 442 – 1432 mm |
