Schmalz part

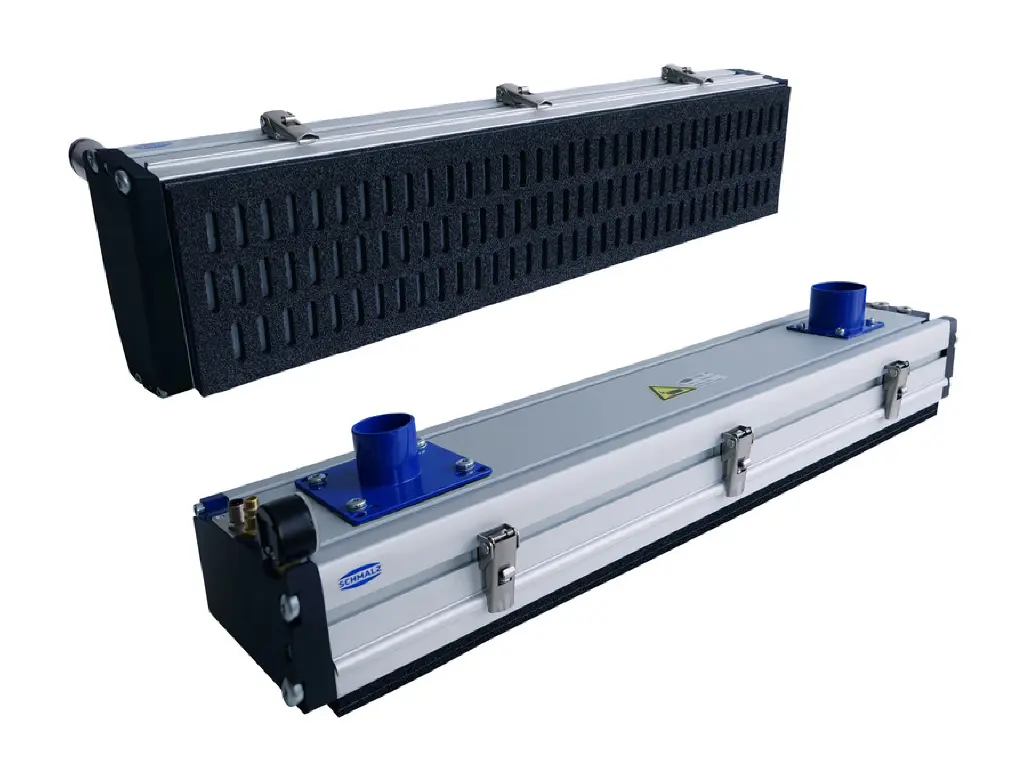

FMHD 1050x170 3R22 O20 G60
Part no.: 10.01.40.00375
Vacuum area gripping system for external vacuum generator, with ball check valves
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Length L | 1050 (mm) |
|---|---|
| Width B | 170 (mm) |
| Arrangement suction cells | 3 rows, 22 mm |
| Material type | Foam open, height 20 mm |
| Shape fittings | Pillar straight, Ø 60 |
| Weight | 16.7 (kg) |
Product family
Suction area (LxW) from 304 x 168 mm to 3,454 x 250 mm
| Width B | 170 – 250 mm |
|---|---|
| Width B1 | 191.5 – 250 mm |
| Width B2 | 175.5 mm |
| Width B3 | 168 – 250 mm |
| Outside diameter D | 60 mm |
| Height H | 111.7 – 116.7 mm |
| Height H1 | 158.7 – 163.7 mm |
| Height H2 | 20 mm |
| Length L | 1050 – 1260 mm |
