Schmalz part

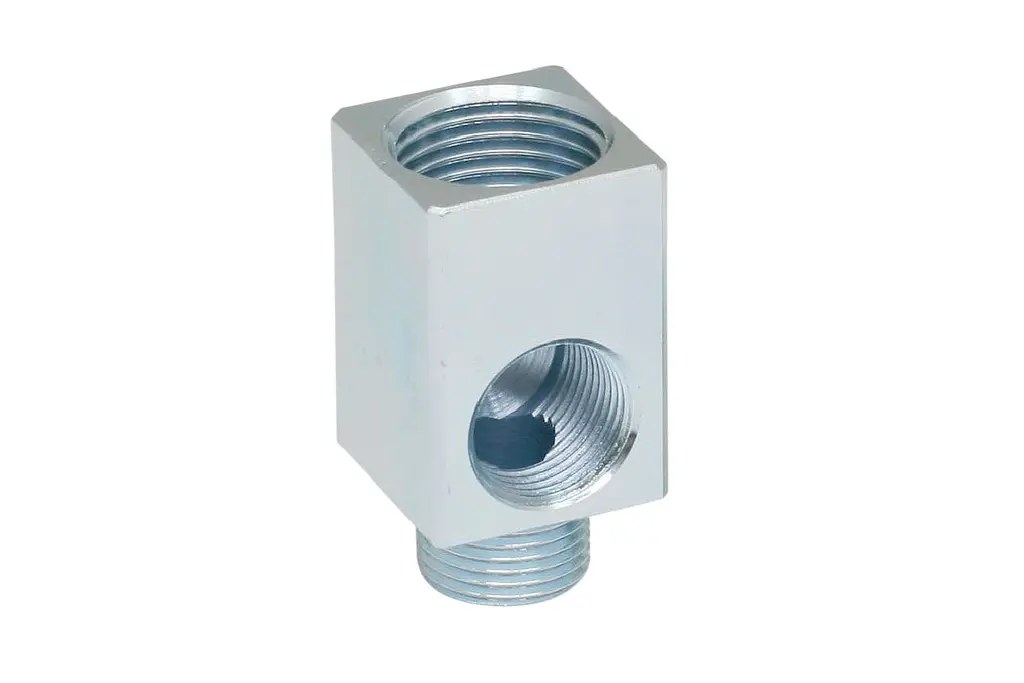

ANW G3/8-IG G3/8-AG
Part no.: 10.01.01.11618
Adapter for mounting suction cups in restricted spaces
Price
$67.59
excl. VAT, shipping & packagingSpecifications
| Suction cup connection | G3/8"-M |
|---|---|
| Product family | ANW |
| Material | Steel |
Product family
Suction cup connection from M3 to G1/2"
| Thread G1 | G1/8"-F, G3/8"-F, M5-F |
|---|---|
| Thread G2 | G1/4"-M, G1/2"-M, G1/8"-M, M5-F, G3/8"-M … |
| Thread G3 | G1/4-IG, G1/2"-F, G1/8"-F, M5-F |
| Height H | 18 – 35 mm |
| Height H1 | 7.5 – 10.5 mm |
| Thread length LG1 | 6 – 13 mm |
| Thread length LG2 | 5 – 10 mm |
| Thread length LG3 | 5 – 12 mm |
| Key width SW1 | 10 – 24 mm |
