Schmalz part

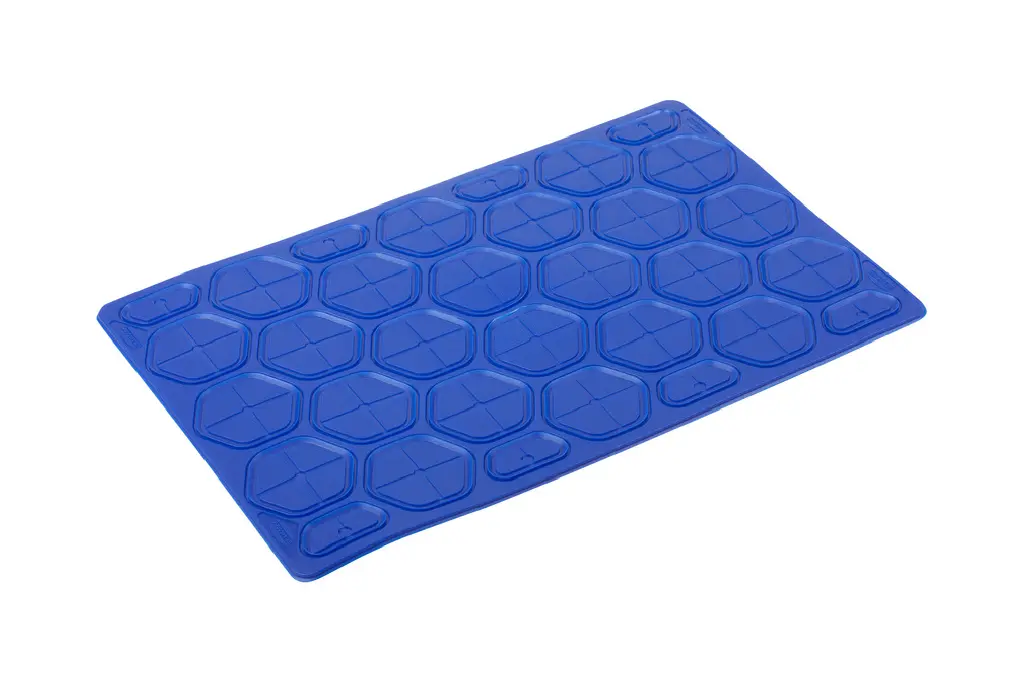

SFM-298.5x198.5
Part no.: 10.01.28.00005
Elastomer mat for fixing workpieces
Price
$37.14
excl. VAT, shipping & packagingSpecifications
| Material | Plastics |
|---|---|
| Utilization design | Matrix-Plate |
| Length L | 298.5 (mm) |
| Width B | 198.5 (mm) |
| Height H | 2.5 (mm) |
Product family
Steel-Plate and Flexmat for use on Matrix-Plate MPL
| Width B | 198.5 – 400 mm |
|---|---|
| Height H | 2.5 – 3 mm |
| Length L | 298.5 – 600 mm |
| Length L1 | 41 – 75 mm |
| Length L2 | 18 – 200 mm |
| Width B1 | 69.5 – 75 mm |
| Width B2 | 100 – 200 mm |
| Nominal diameter dn | 0.4 mm |
