Schmalz part

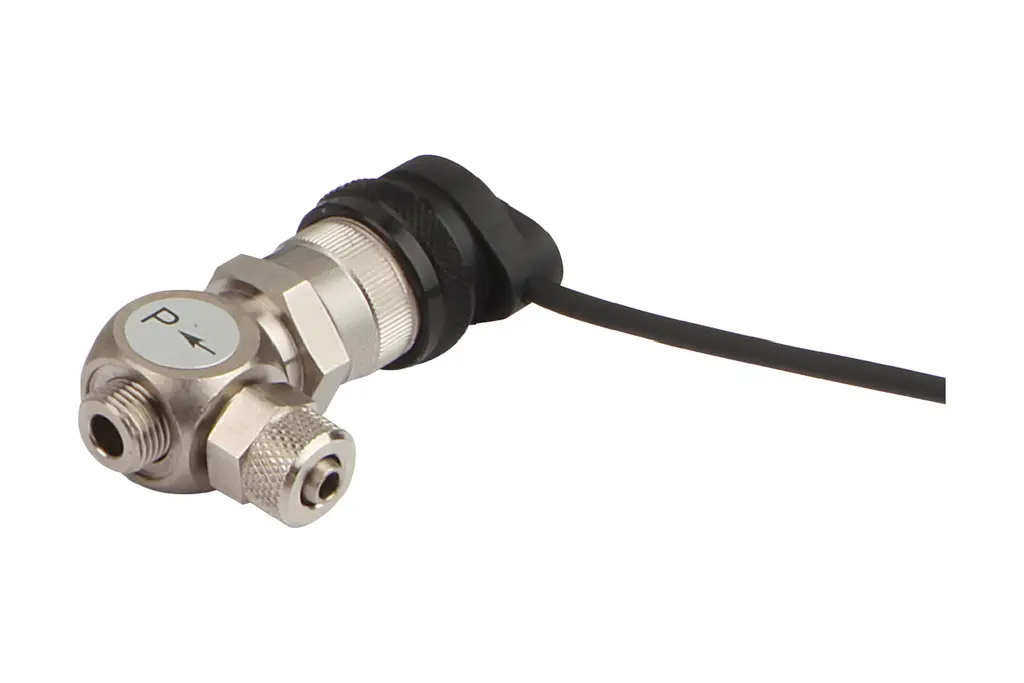

EMV 2.5 24V-DC 3/2 NC K-2P
Part no.: 10.05.01.00289
Solenoid valve EMV for direct control of compressed air
Price
$499.60
excl. VAT, shipping & packagingSpecifications
| Nominal size | 2.5 (mm) |
|---|---|
| Voltage DC | 24 V - DC |
| Function valve | 3/2 multiway valve |
| Control valve | Normally closed |
| Connection thread | G1/8"-M |
| Pressure range (operating pressure) [bar] | 2.0 ... 8.0 bar |
| Power consumption DC | 4.5 (W) |
| Interface electrical connection | Cable, 2-pole |
| Weight | 0.1 (kg) |
Product family
Floating suction cup module for increasing the transfer height of sensitive workpieces
| Length L | 5 – 51.7 mm |
|---|---|
| Pressure range (operating pressure) [bar] | 0.5 ... 6.0 bar, bar, 2.5 ... 7.0 bar, 2.0 ... 8.0 bar |
| Weight | 0.065 – 14.7 g |
| Width B2 | 8.1 – 11 mm |
| Width B | 14 – 15 mm |
| Internal diameter d | 1.6 – 4.2 mm |
| Thread G4 | M4-M |
| Height H | 8 – 35 mm |
| Thread G1 | G3/8"-M, M8x1-F, M12x1-F, M5-M, G1/8"-M |
