Schmalz part

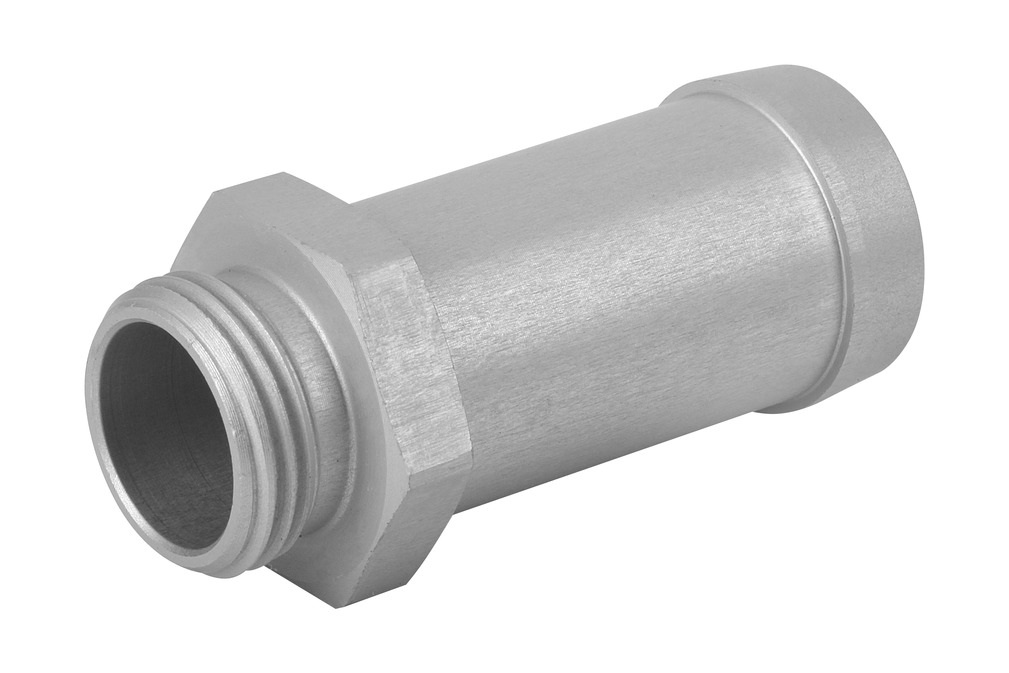

ABL-FUEHR 18x46 SWGm/SCG
Part no.: 10.01.30.00087
Comp. for discharging exhaust air
Price
$35.38
excl. VAT, shipping & packagingSpecifications
| Utilization design | Wafer- / Composite gripper |
|---|---|
| Outside diameter D | 18 (mm) |
| Length L1 | 46 (mm) |
Product family
Floating suction cup module for increasing the transfer height of sensitive workpieces
| Length L | 5 – 51.7 mm |
|---|---|
| Pressure range (operating pressure) [bar] | 0.5 ... 6.0 bar, bar, 2.5 ... 7.0 bar, 2.0 ... 8.0 bar |
| Weight | 0.065 – 14.7 g |
| Width B2 | 8.1 – 11 mm |
| Width B | 14 – 15 mm |
| Internal diameter d | 1.6 – 4.2 mm |
| Thread G4 | M4-M |
| Height H | 8 – 35 mm |
| Thread G1 | G3/8"-M, M8x1-F, M12x1-F, M5-M, G1/8"-M |
