Schmalz part

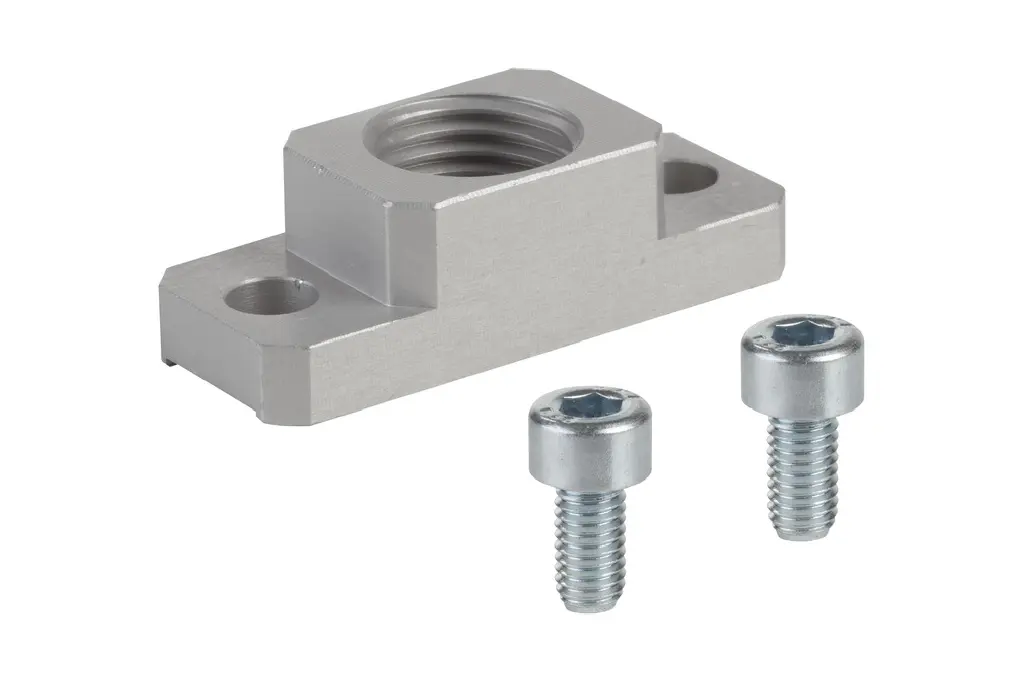

BEF-PL 38x15x11.5 G1/4-IG SNG
Part no.: 10.01.29.00403
Mounting plate
Price
$148.54
excl. VAT, shipping & packagingSpecifications
| Pressure range (operating pressure) [bar] | bar |
|---|---|
| Length L | 38 (mm) |
| Width B | 15 (mm) |
| Height H | 11.5 (mm) |
| Thread G1 | G1/4"-F |
| Utilization design | Needle gripper |
Product family
Mounting plate
| Width B | 34 mm |
|---|---|
| Internal diameter d | 4.5 mm |
| Thread G1 | G1/4"-F |
| Height H | 11.5 mm |
| Height H2 | 7.5 mm |
| Height H3 | 4.4 mm |
| Length L | 31 mm |
| Thread length LG1 | 11.5 mm |
| Hole spacing X1 | 20 mm |
