Schmalz part

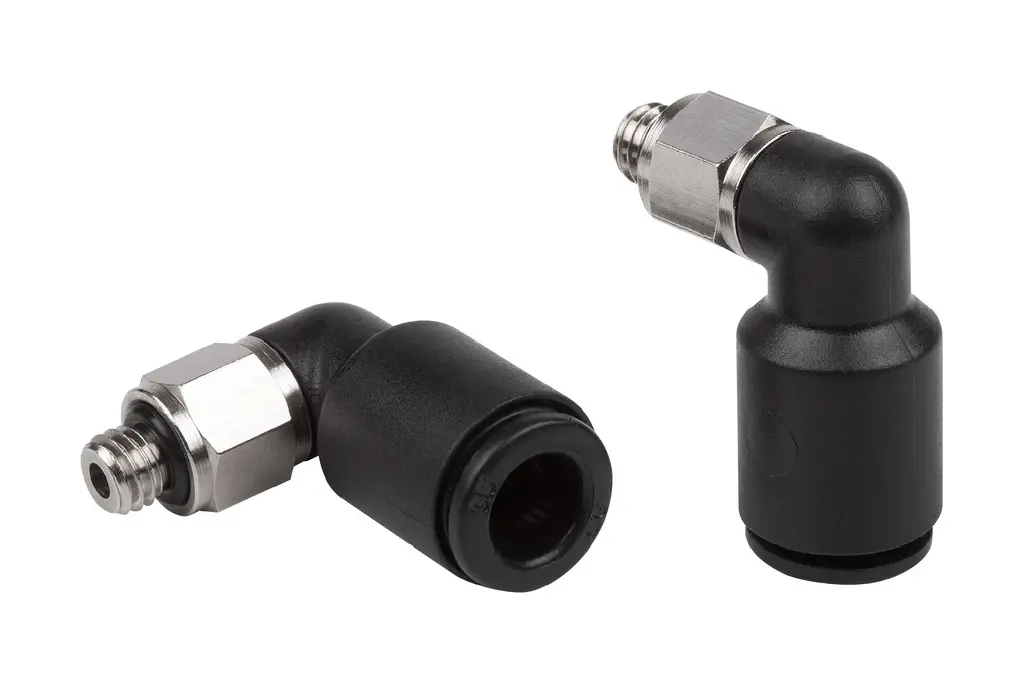

STV-W M5-AG 6
Part no.: 10.08.02.00296
Push-in Fitting, swivelling elbow
Price
$14.92
excl. VAT, shipping & packagingSpecifications
| Pressure range (operating pressure) [bar] | bar |
|---|---|
| Length L | 20.8 (mm) |
| Height H | 13 (mm) |
| Thread G1 | M5-M |
Product family
Retrofit kit
| Length L | 8 – 38 mm |
|---|---|
| Thread length LG1 | 8 – 11.5 mm |
| Width B | 15 mm |
| Internal diameter d | 5.5 mm |
| Thread G1 | G1/4"-F |
| Height H | 11.5 mm |
| Height H2 | 5 mm |
| Length L2 | 20 mm |
| Hole spacing X1 | 29 mm |
