Schmalz part
RED-STK G3/8-AG G1/4-IG MS-VN
Part no.: 10.08.04.00094

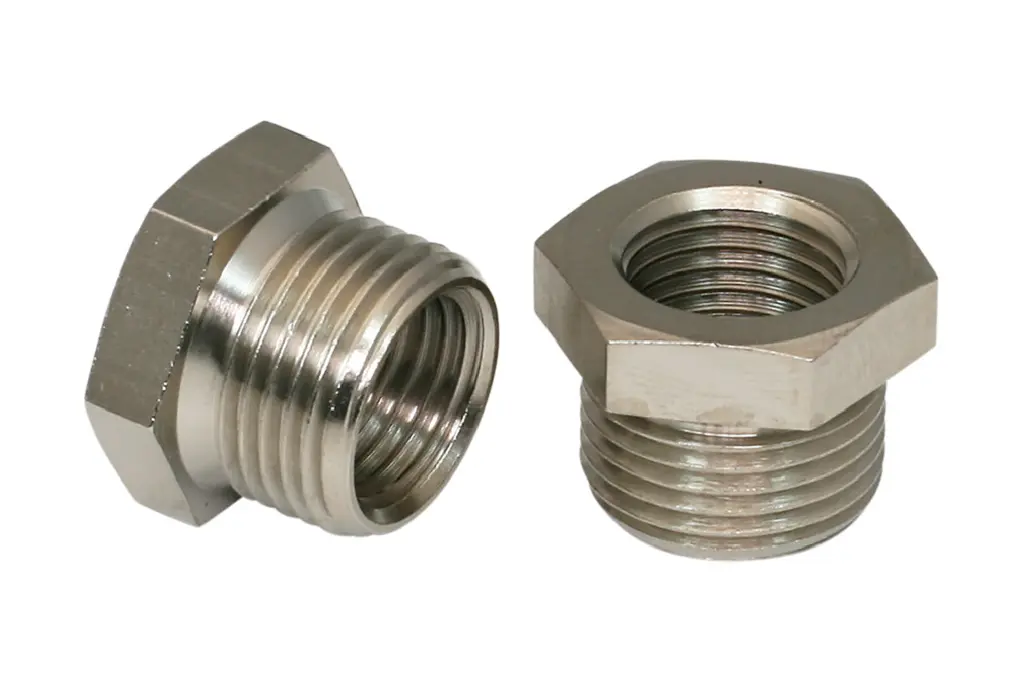

Reduction piece with hexagon
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Thread G1 | G3/8"-M |
|---|---|
| Thread G2 | G1/4"-F |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5 (mm) |
Product family
Connection thread M5 to G1-1/2"
| Material | Aluminum, Brass |
|---|---|
| Weight | 1 – 400 g |
| Thread G1 | G3/8"-M, G1-1/4"-M, M3-M, M5-M, G1/8"-M … |
| Thread length LG1 | 3.5 – 16.1 mm |
| Length L | 2 – 33 mm |
| Key width SW1 | 5 – 50 mm |
| Nominal diameter dn | 1.2 – 32.8 mm |
| Thread length LG2 | 4.5 – 24.1 mm |
| Thread G2 | G1/4"-M, G1/4"-F, M5-F, G1/8"-F, G3/8"-F … |
