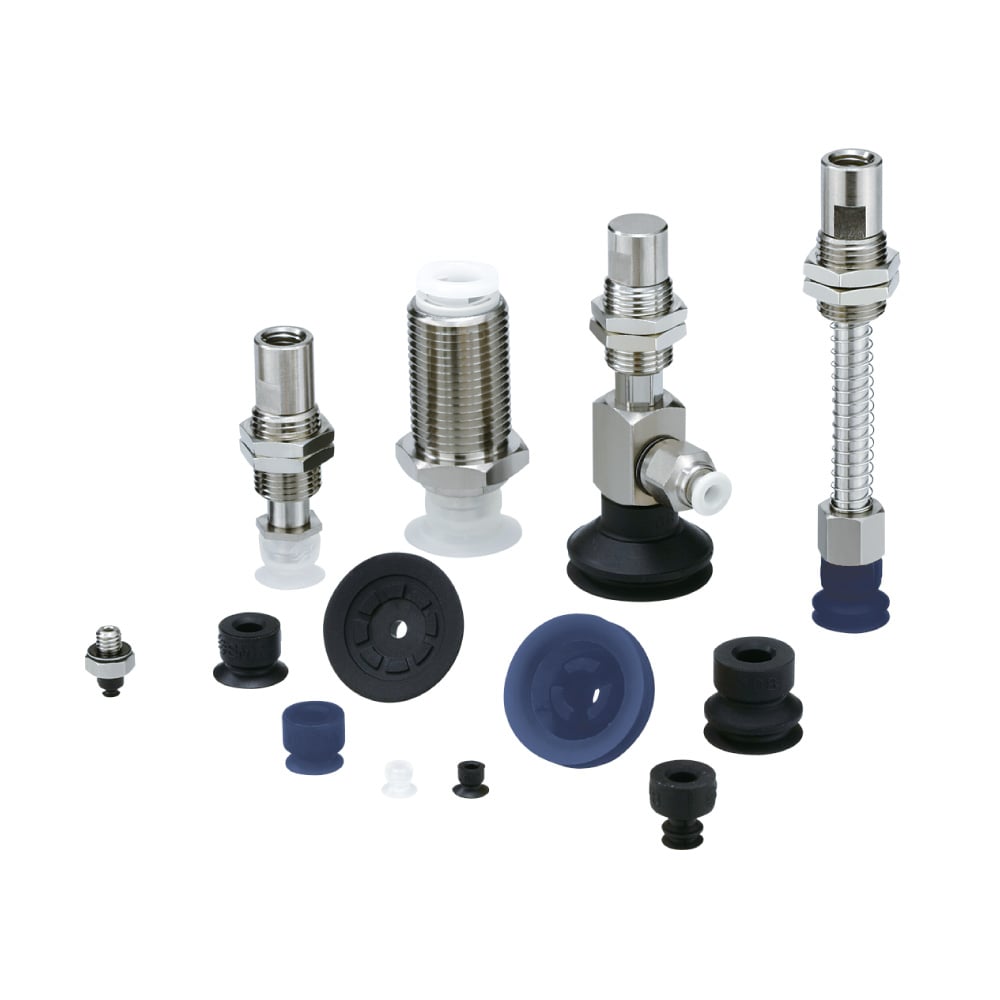

ZP3
Manufacturer: SMC Corporation
Compact, flat/flat-groove/bellows
The ZP3 Series vacuum pads by SMC Corporation are designed for efficient adsorption of various workpieces, featuring a compact buffer body and a range of pad diameters. Available in flat, flat with groove, and bellows types, these pads are suitable for different applications and materials.
Price: £9.73 exc VAT (RS ZPT08BS-A6)
Specifications
- Pad diameter
- ø1.5, ø2, ø3.5, ø4, ø6, ø8, ø10, ø13, ø16 mm
- Overall length reduction
- Max. 9 mm shortened (Pad unit), Max. 11 mm shortened (with adapter)
- Buffer stroke options
- 3, 6, 10, 15, 20 mm
- Materials
- NBR, Silicone rubber, Urethane rubber, FKM, Conductive NBR, Conductive silicone rubber
- Vacuum inlet direction
- Vertical
- Connection types
- Male thread, Female thread, Barb fitting, One-touch fitting
- Applicable tubing
- ø2 for Barb fitting and One-touch fitting
