Schmalz part

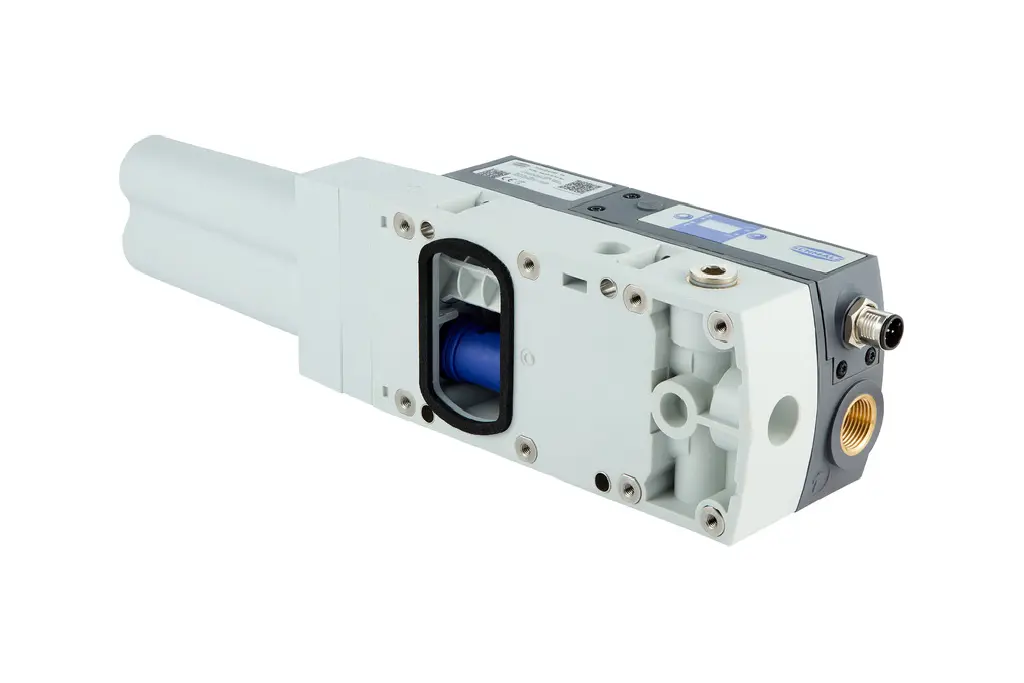

SCPLc 50 HF G FA NO NPN
Part no.: 10.02.02.07692
Compact ejector with multi-stage nozzle and integr. valve technology and vacuum switch
Price
$1,113.55
excl. VAT, shipping & packagingSpecifications
| Size | 50 |
|---|---|
| Shape | High flow |
| Thread G1 | G3/8"-F |
| Thread G2 | G3/4"-F |
| Degree of evacuation | 70 (%) |
| Suction rate (max.) | 550 (l/min) |
| Air consumption suction | 210 (l/min) |
| Shape compact ejectors | Flange version with axial exhaust air |
| Control valve | Normally open |
| Electrical connection | Male connect M12, 5 pol |
| Construction vacuum switch | NPN switching |
Product family
The Vacuum blower (family, SBV) by Schmalz is a high-flow blower designed for efficient vacuum generation. It operates within a suction capacity range of 75 to 1,250 m³/h and achieves a vacuum level of approximately 40%.
| Suction capacity | 75–1,250 m³/h |
|---|---|
| Vacuum level | ~40% |
