Schmalz part

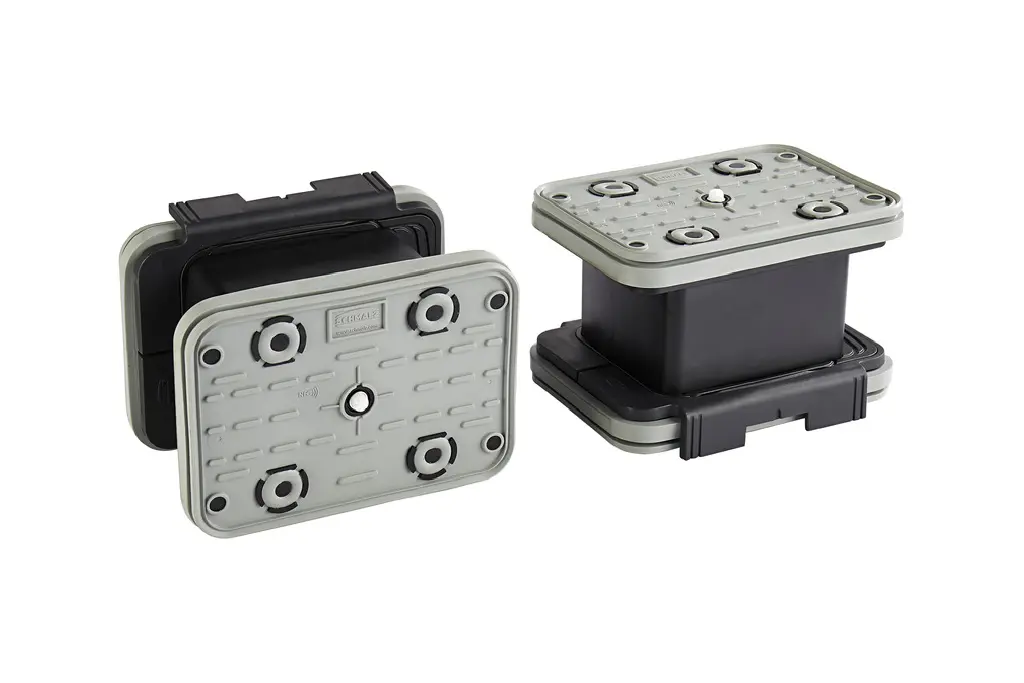

VCBL-K2-PRO 160x115x100 TV
Part no.: 10.01.12.04093
Vacuum block for Schmalz 2-circuit console
Price
$466.33
excl. VAT, shipping & packagingSpecifications
| Version | PRO |
|---|---|
| Dimension (LxW) | 160x115 |
| Dimension suction plate bottom | 160x115 mm |
| Height H | 100 (mm) |
| Additional function vacuum block | Touch valve |
Product family
Height 100 mm
| Width B | 30 – 115 mm |
|---|---|
| Height H | 100 mm |
| Length L | 120 – 160 mm |
| Dimension suction plate bottom | 160x115 mm |
| Height H2 | 73 – 78 mm |
| Length L1 | 160 mm |
| Length L2 | 84 – 129 mm |
| Additional function vacuum block | Touch valve |
