Schmalz part

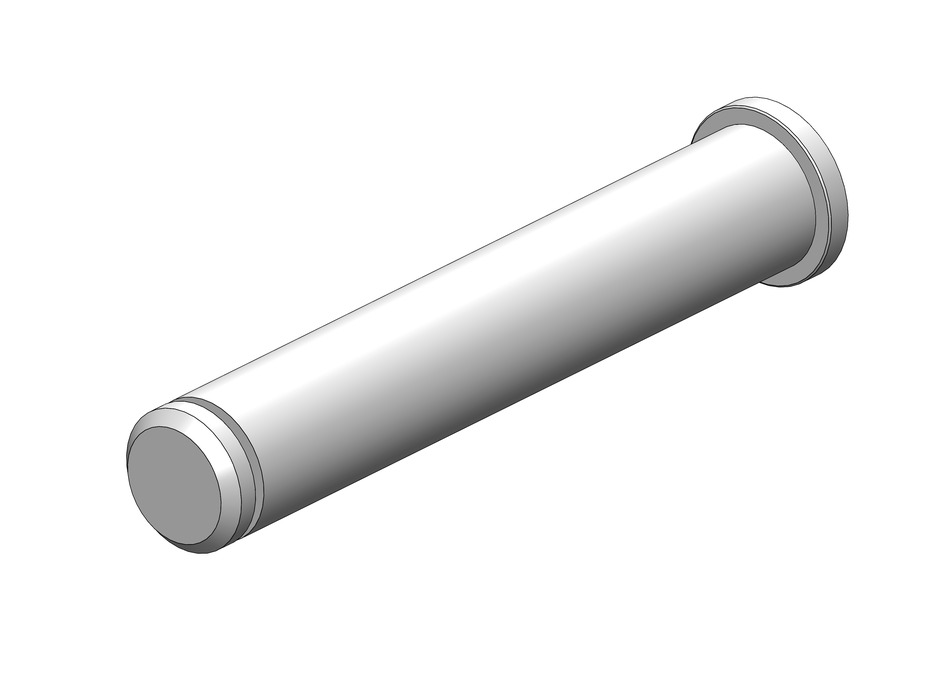

BOLZ 16x91 ST-VZ
Part no.: 17.01.01.00168
Pin with head and cut-in
Price
Price on request
excl. VAT, shipping & packagingSpecifications
Detailed specifications are listed on the Schmalz product page.
Product family
The VacuMaster by Schmalz is a crane-mounted vacuum lifting device designed for ergonomic and safe handling of heavy loads. It offers various models with load capacities ranging from 100 kg to over 2,000 kg, suitable for different applications including handling metal plates, glass sheets, and wooden workpieces.
| Load Capacity | up to 2,000 kg (higher capacities upon request) |
|---|---|
| Basic Model Load Capacity | up to 750 kg |
| Comfort Model Load Capacity | up to 750 kg |
| Eco Model Load Capacity | up to 1,000 kg |
| Window Model Load Capacity | up to 300 kg |
| Wood Model Load Capacity | up to 250 kg |
| Coil Model Load Capacity | up to 1,000 kg |
| Light Model Load Capacity | up to 100 kg |
| Multi Model Load Capacity | up to 400 kg |
| Glass Model Load Capacity | up to 1,000 kg |
| Panel Model Horizontal Transport Capacity | up to 400 kg |
| Panel Model Vertical Transport Capacity | up to 260 kg (or 400 kg with special suction plates) |
| Material | steel, aluminum, high-strength plastic |
| Features | Ergonomic operator handle, controlled vacuum generator, malfunction-free manual sliding valve |
