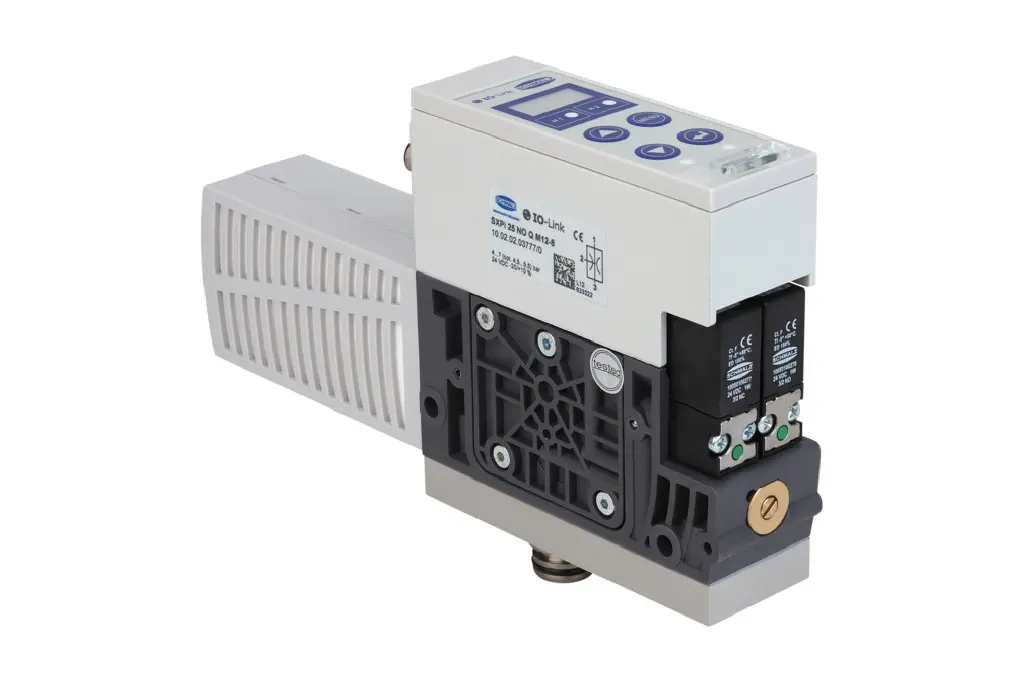

SXPi / SXMPi (X-Pump)
Manufacturer: Schmalz (J. Schmalz GmbH)
Compact ejector, IO-Link Class A
The SXPi / SXMPi is a high-performance compact ejector family designed for handling suction-tight workpieces under extreme conditions. It features IO-Link Class A communication, an integrated air-saving function, and condition monitoring capabilities.
Price: Price $1,968.68-$2,661.88 (58 priced variants; 6 in stock)
Specifications
- Suction Rate
- 185 l/min to 220 l/min
- Max Vacuum
- 85 % (850 mbar)
- Air Consumption (Suction)
- 290 l/min
- Operating Pressure Range
- 3.0 to 6.0 bar
- Protection Type
- IP 65
- Nozzle Diameter
- 2.5 mm
- Sound Pressure Level
- 67 dB(A)
- Electrical Connection
- M12 plug (8 pol or 5+5 pol)
- Control Valve
- Impulse valve or Normally closed or Normally open
- Material
- Robust plastic
