Schmalz part

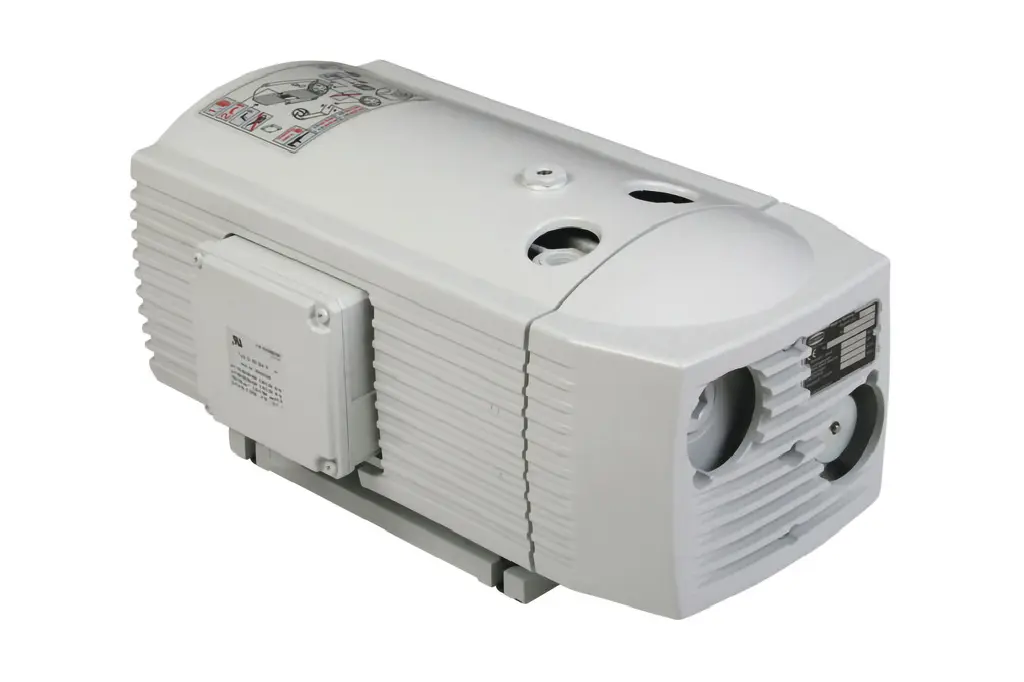

EVE-TR 40 AC3 VBV
Part no.: 11.01.40.01011
Oil-free pump with constant suction rate, robust, requires little maintenance
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Sound pressure level at 50 Hz | 67 (dB(A)) |
|---|---|
| Voltage at 50 Hz | 190 - 255 V / 330 - 440 V AC3 |
| Voltage at 60 Hz | 190 - 290 V / 330 - 500 V AC3 |
| Suction rate (50 Hz) | 40 (m³/h) |
| Suction rate (60 Hz) | 48 (m³/h) |
| Vacuum (50 Hz) | -600 (mbar) |
| Rated power at 50 Hz | 1.25 (kW) |
| Rated power at 60 Hz | 1.5 (kW) |
| Weight | 38.5 (kg) |
| Category | Electrical vacuum generation |
Product family
Set of parts subject to wear pump
| Height H | 14 – 523 mm |
|---|---|
| Width B | 121 – 473 mm |
| Weight | 0.73 – 372 kg |
| Internal diameter d | 6 – 12 mm |
| Length L | 320 – 572 mm |
| Hole spacing X1 | 220 – 310 mm |
| Suction rate (50 Hz) | 25 – 260 m³/h |
| Suction rate (60 Hz) | 30 – 300 m³/h |
| Voltage at 60 Hz | D330 V / Y575 V ±10 %, YY230 / Y460 V ±10 % |
