Schmalz part

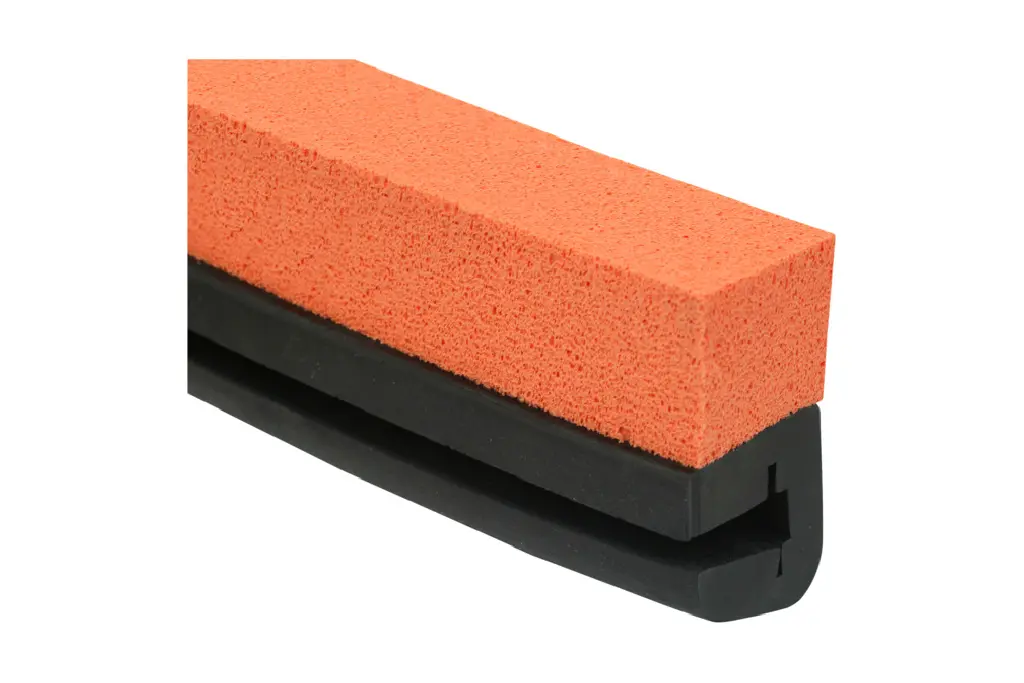

DI-PROF 30x25 2K-SWG NK-20/55
Part no.: 10.07.04.00041
Sealing section for construction of specific gripper solutions
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Width B | 30 (mm) |
|---|---|
| Height H | 25 (mm) |
| Sealing material | Natural Rubber NK |
| Material hardness [Shore A] | 20 (Shore A) |
Product family
Dimensions from 4 x 6 mm to 30 x 25 mm
| Width B | 4 – 30 mm |
|---|---|
| Height H | 6 – 25 mm |
| Sealing material | Chloroprene CR, EPDM, Natural Rubber NK, Perbunan NBR |
| Weight | 20 – 1201.2 g |
| Material hardness [Shore A] | 20 – 60 Shore A |
| Product family | DI-PROF |
| Recommended slot width x slot depth [mm] | 26x10, 11x3, 13x10, 11x10, 9x6.5 … |
| Height H1 | 7 – 53 mm |
| Width B1 | 8.5 – 32 mm |
