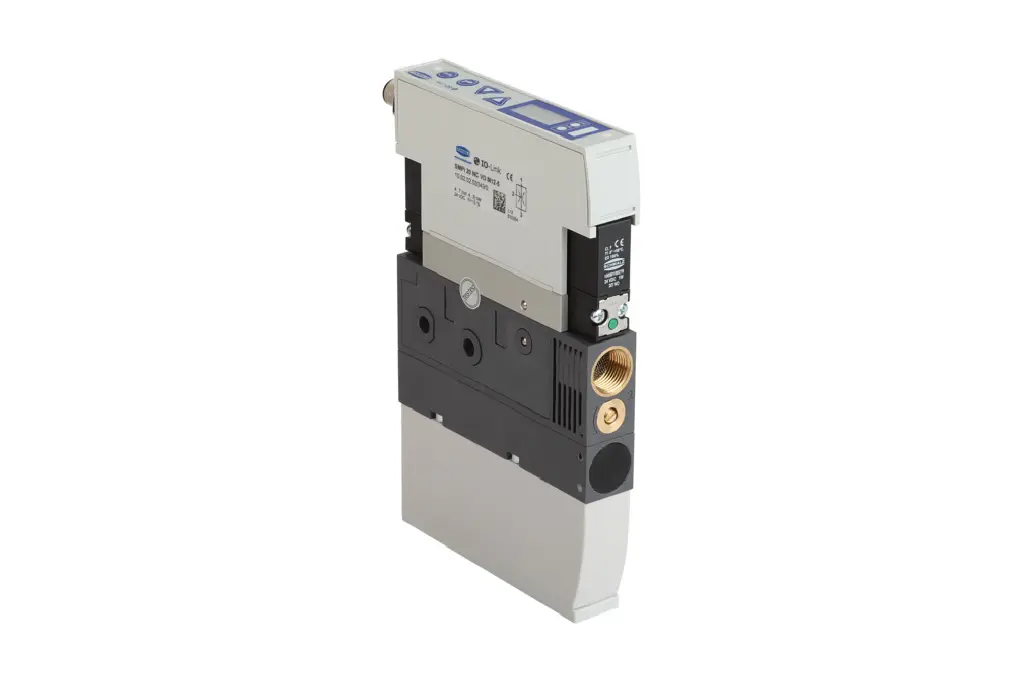

SCPi / SMPi
Manufacturer: Schmalz (J. Schmalz GmbH)
Compact ejector, electronic / IO-Link
The SCPi / SMPi are compact electronic ejectors designed for handling airtight and porous workpieces in various applications, including automotive and packaging. They feature integrated suck/blow valves, vacuum monitoring, and IO-Link functionality for easy parameterization.
Price: Price $1,191.23-$1,848.85 (36 priced variants; 20 in stock)
Specifications
- Suction Rate
- 75 l/min to 195 l/min
- Max Vacuum
- 85%
- Control Type
- IO-Link
- Material
- High strength plastic
- Electrical Connection
- M12 plug
- Integrated Valves
- NO/NC/double-solenoid
- Air Saving Function
- Yes (RD version)
- Weight
- Weight-optimized housing
- Display
- User display with seven segments
- Pneumatic Connections
- G3/8" and G1/4"
- Operating Pressure Range
- 4.0 to 7.0 bar
- Protection Type
- IP 65
