Schmalz part

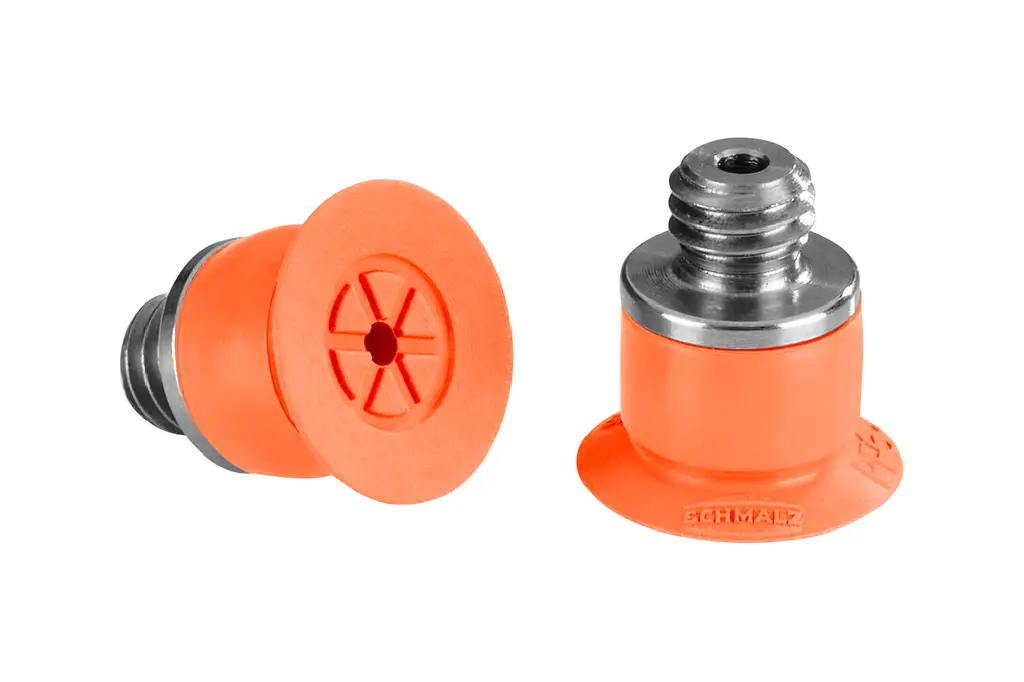

PFYN 10 HT1-ESD-60 M5-AG SO
Part no.: 10.01.01.16270
Flat suction cup for gentle handling of displays and thin workpieces
Price
$17.90
excl. VAT, shipping & packagingSpecifications
| Size | 10 |
|---|---|
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Austenitic stainless steel |
| Product family | PFYN |
Product family
The PFYN is a flat round suction cup designed for handling flat workpieces with smooth or slightly rough surfaces. It is suitable for various industries including electronics, food, and packaging, and is available in multiple materials for different applications.
| Diameter Range | 1 mm to 200 mm |
|---|---|
| Material Options | FPM, HT1, HT1-ESD, NBR, NBR-CO, PU, SI, SI-CO |
| Sealing Lip | Single sealing lip |
| Nipple Connection | Plugged for cups up to 50 mm; screwed into metal inlay for cups 60 mm and above |
| Material Hardness | 55-60 Shore A |
| Applications | Handling hot workpieces, ESD-compliant variants available |
| Design Features | Robust, wear-resistant design with support surfaces to prevent deformation |
