Schmalz part

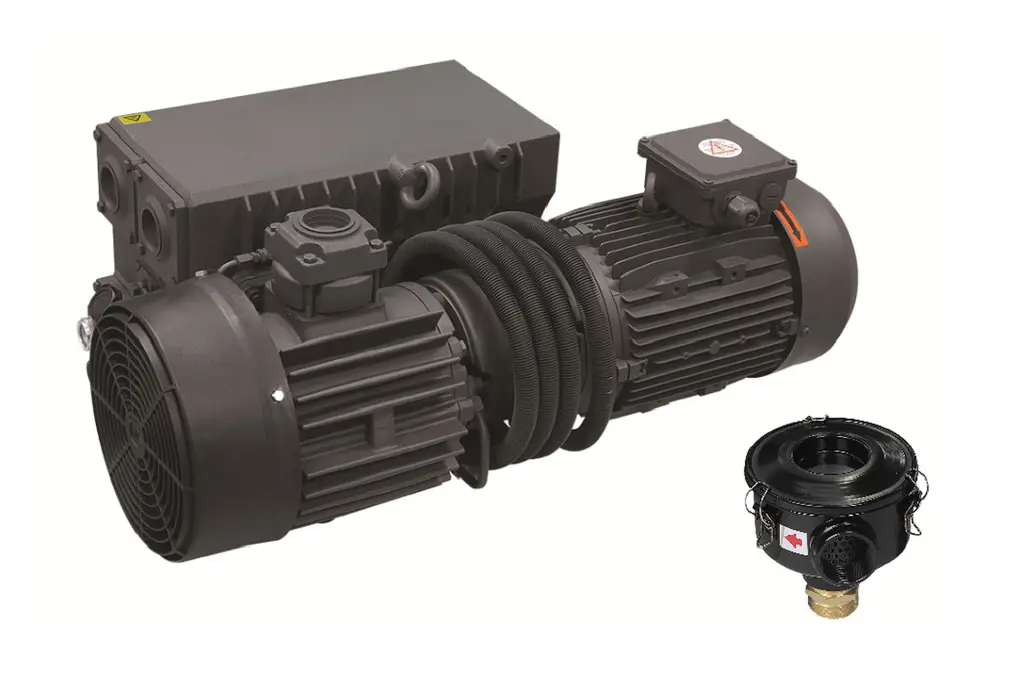

EVE-OG 255 AC3 F
Part no.: 10.03.02.00052
Oil-lubricated pump for maximum vacuum levels, requires little maintenance
Price
$30,486.69
excl. VAT, shipping & packagingSpecifications
| Current type | Three phase A.C. |
|---|---|
| Sound pressure level at 50 Hz | 72 (dB(A)) |
| with | Filter |
| Suction rate (50 Hz) | 255 (m³/h) |
| Rated power at 50 Hz | 5.5 (kW) |
| Voltage at 50 Hz | 400/690AC3 |
| Weight | 199.8 (kg) |
Product family
The Oil-lubricated rotary-vane vacuum pumps EVE-OG by Schmalz are designed for universal use in various applications, providing a suction rate of up to 255 m³/h and achieving a maximum vacuum of 98%. These robust pumps feature an integrated oil separator and are suitable for handling both airtight and porous workpieces.
| Suction Rate | up to 255 m³/h |
|---|---|
| Max Vacuum | 98% |
| Design | Oil-lubricated vacuum pump with integrated oil separator |
| Operation Principle | Multi vane rotary vacuum pump |
| Power Supply | Three phase A.C. |
| Cooling | Integrated cooling fan |
| Maintenance | Low-maintenance |
| Vibration | Vibration-free operation |
| Air Consumption | Individually adjustable suction flow rate |
