Schmalz part

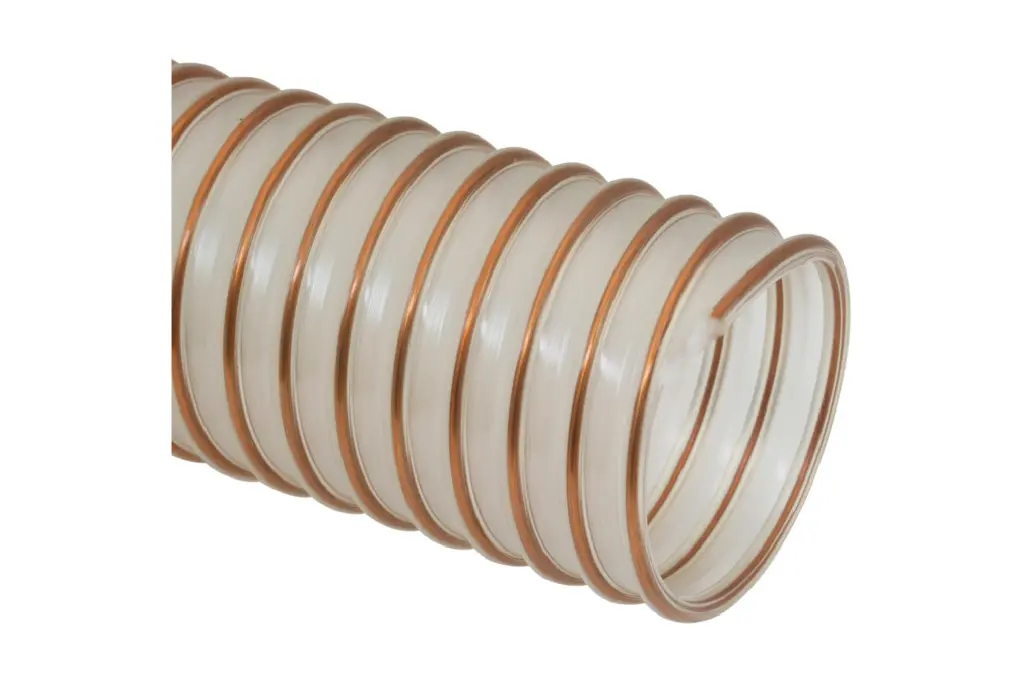

VSL 86-75x15 PU-DS-AS TR
Part no.: 10.07.09.51554
Hose for vacuum and compressed-air systems
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Outside diameter D | 86 (mm) |
|---|---|
| Internal diameter d | 75 (mm) |
| Length L | 15 (m) |
| Material hose | PU, wire spiral, antistatic |
| Bending radius min. | 66 (mm) |
| Pressure range (operating pressure) [bar] | -0.50 ... 1.69 bar |
| Operating temperature | -40 ... 90 °C |
| Color | Transparent |
Product family
All hoses and connections which are required to design a functioning vacuum system are available here. This includes, for example, vacuum hoses, plug-in screw unions, sealing rings and hose clamps.
| External/Internal diameters | 4/2 to 87/75 mm |
|---|---|
| Material | PA, PE, PU, PVC |
| Clamping range | 10 to 90 mm |
| Outer hose diameter | 60 to 112 mm |
| Connection thread | M5 to G1/2" |
| Material (fittings) | nickel-plated brass |
| Rotation speed | 21 to 3,500/min |
| Internal diameters (sealing rings) | 3.5 to 48 mm |
