Schmalz part

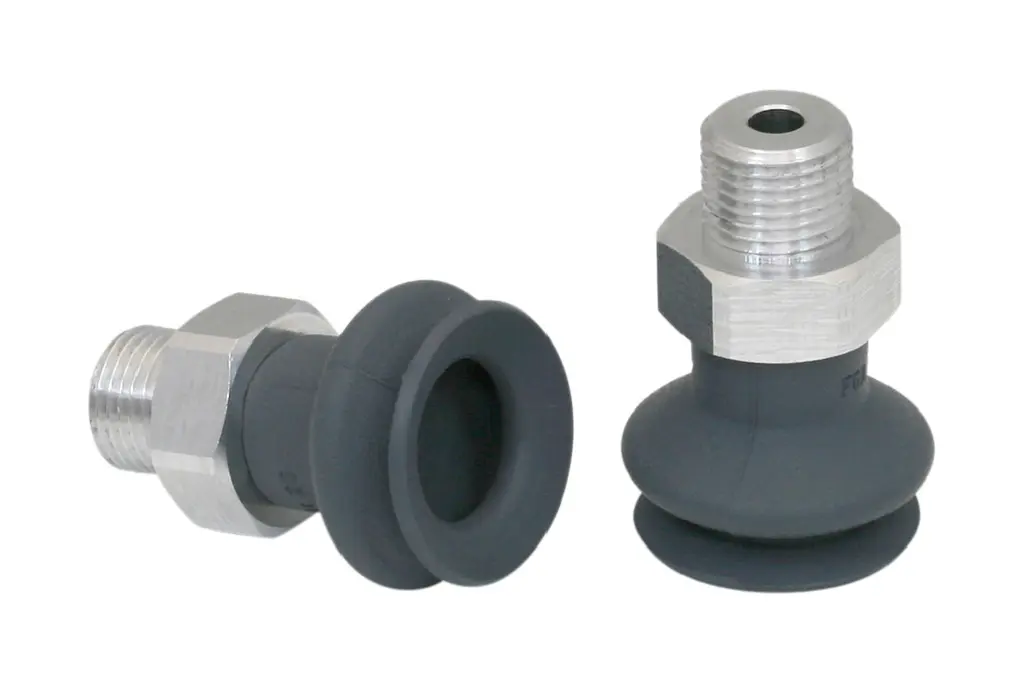

FSGA 20 NK-45 G1/8-AG
Part no.: 10.01.06.00396
Bellows suction cup (round) with optimal adaptation to uneven surfaces
Price
$16.26
excl. VAT, shipping & packagingSpecifications
| Size | 20 |
|---|---|
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/8"-M |
| Number of folds | 1.5 |
| Product family | FSGA |
Product family
The FSGA is a round bellows suction cup with 1.5 folds designed for handling sensitive workpieces, providing optimal damping and adaptability to uneven surfaces. It is suitable for various applications, including those in the electronics industry and environments exposed to chemicals.
| Diameter | 2 to 78 mm |
|---|---|
| Materials | HT1, HT1-ESD, NBR, NBR-ESD, SI, EPDM-ECO |
| Material Hardness | 55-60 Shore A |
| Connection Thread | M3, M5, G1/8", G1/4"-AG (male) |
| Number of Folds | 1.5 |
